SysML: HOWTO Use an explicit converter between different Unit systems

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
PATTERN
Specification keywords
SysML-1.6
SysML-1.7
SysPhS-1.1
SysMLv1.x keywords
ConstraintBlock
constraint parameter
ValueType
value property
Unit
ValueType::unit
SysPhS Keywords
PhSConstant
PhSVariable
Voltage
Torque
Keywords

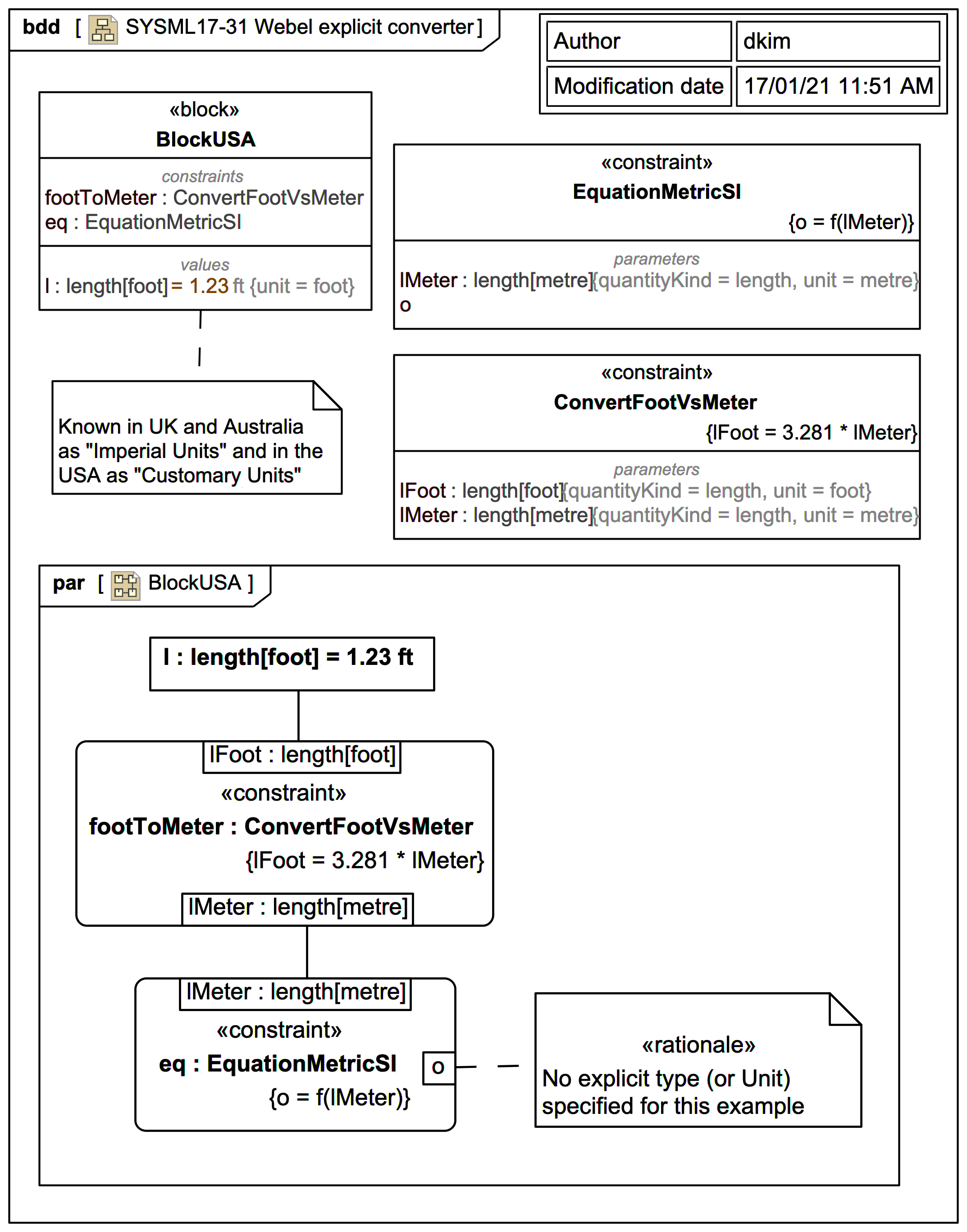

Click on the image to view it full size
In the example shown there is deliberately no explicit ValueType assigned to the output o.

Please consider taking this further by using wrapper as shown in: SysML: HOWTO Safely incorporate ConstraintBlock equations from a library into a project with local ValueType variants: CASE: SysPhS vs ISO-80000 ModelLibrary
