Property::subsettedProperty

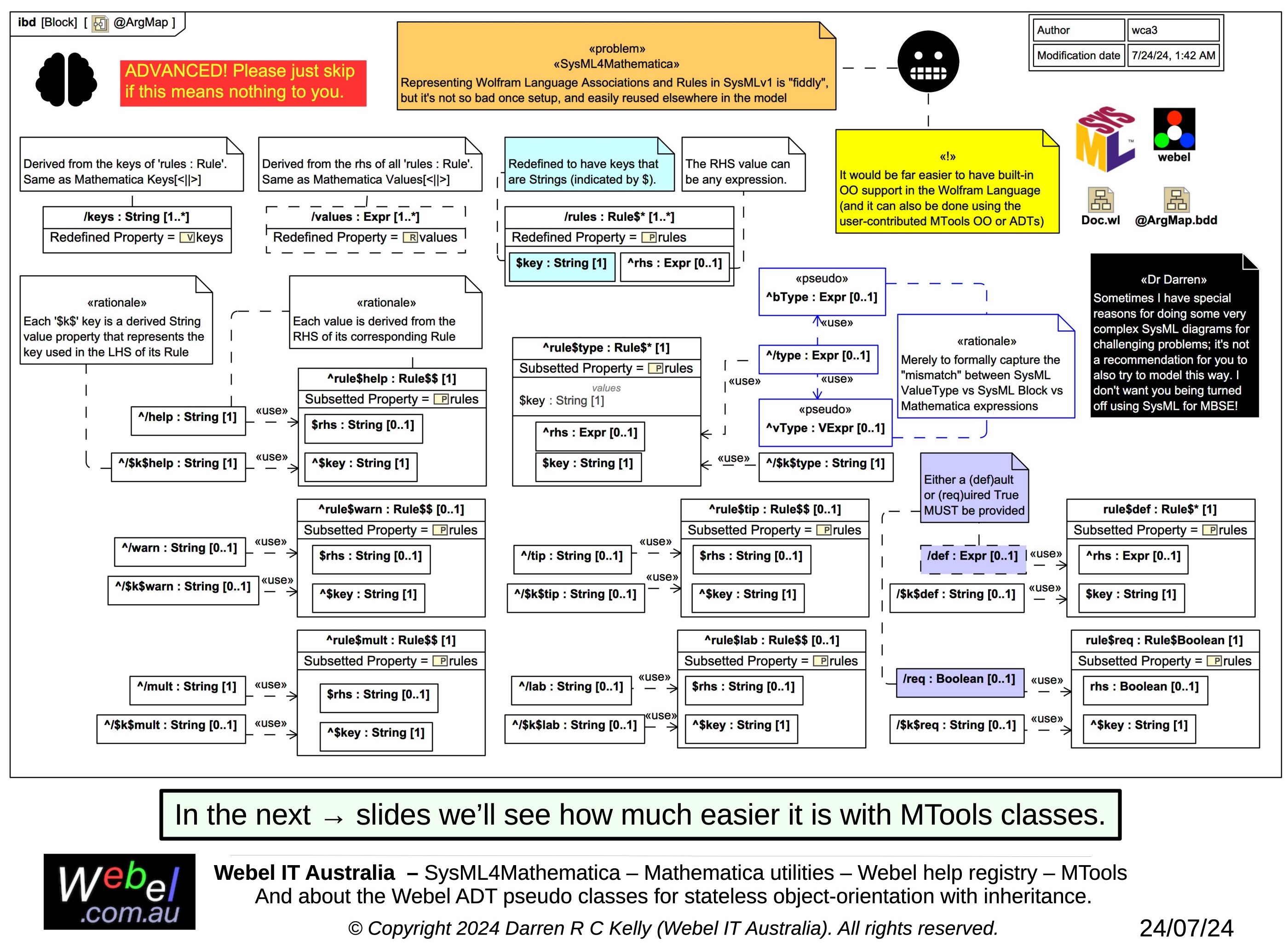

Association as SysML: CASE: Webel @ArgMap «pseudo» block (slightly less "fiddly" as an Internal Block Diagram)

This content has been marked as discussing an ADVANCED topic!

Gallery

Tutorial

[TECHNICAL SLIDE TRAIL] The Webel libraries for Wolfram Mathematica: With SysMLv1 models.

Section

SECTION: The Webel '$opt$' and '$arg$' help holder conventions for options and arguments in the Wolfram Language

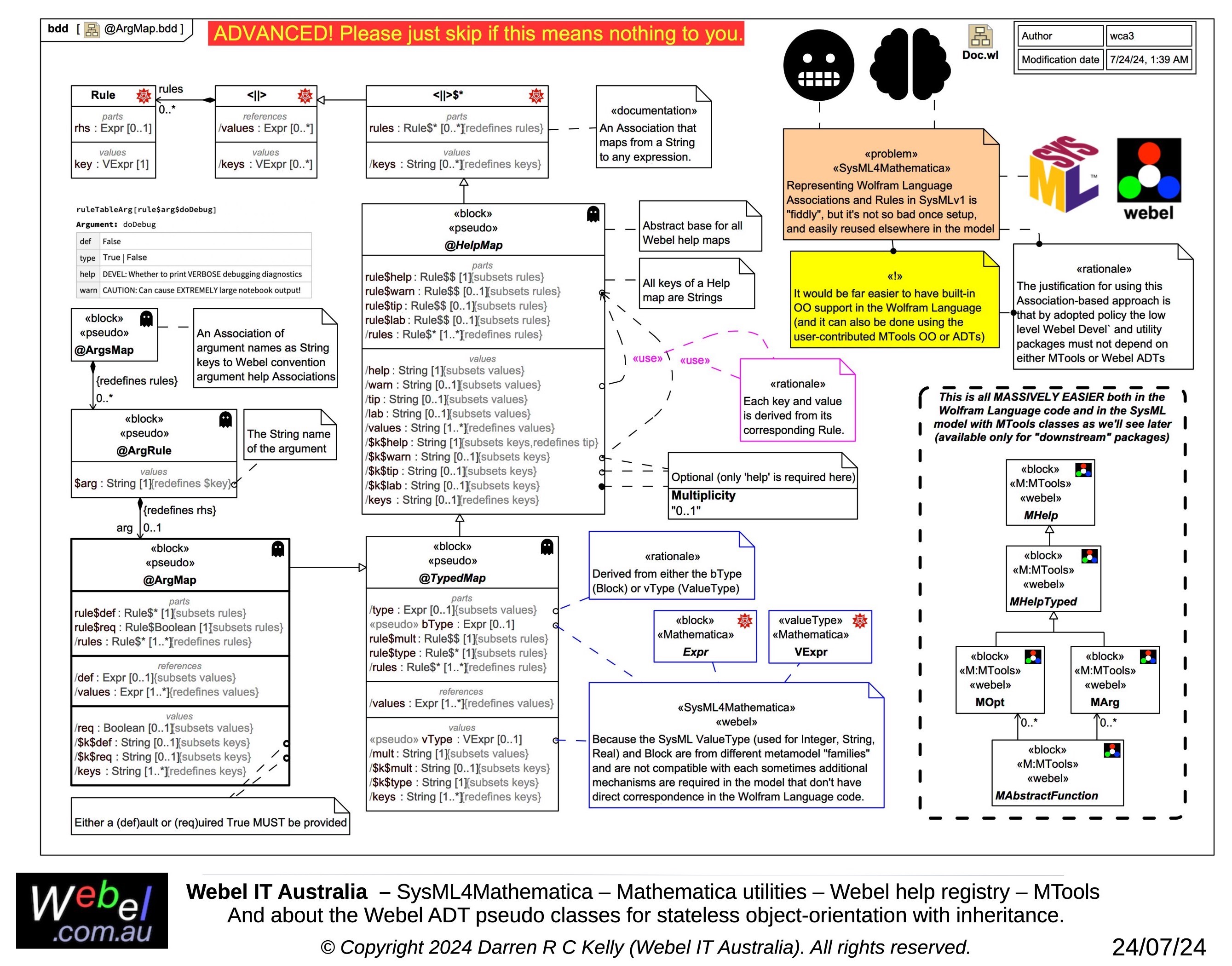

Association as SysML: CASE: Webel @RuleMap and @ArgsMap «pseudo» blocks. Very "fiddly" to represent in a SysML Block Definition Diagram!

This content has been marked as discussing an ADVANCED topic!

Gallery

Tutorial

[TECHNICAL SLIDE TRAIL] The Webel libraries for Wolfram Mathematica: With SysMLv1 models.

Section

SECTION: The Webel '$opt$' and '$arg$' help holder conventions for options and arguments in the Wolfram Language

UML2/SysML1.x: Property: derived vs derived union vs subsetted

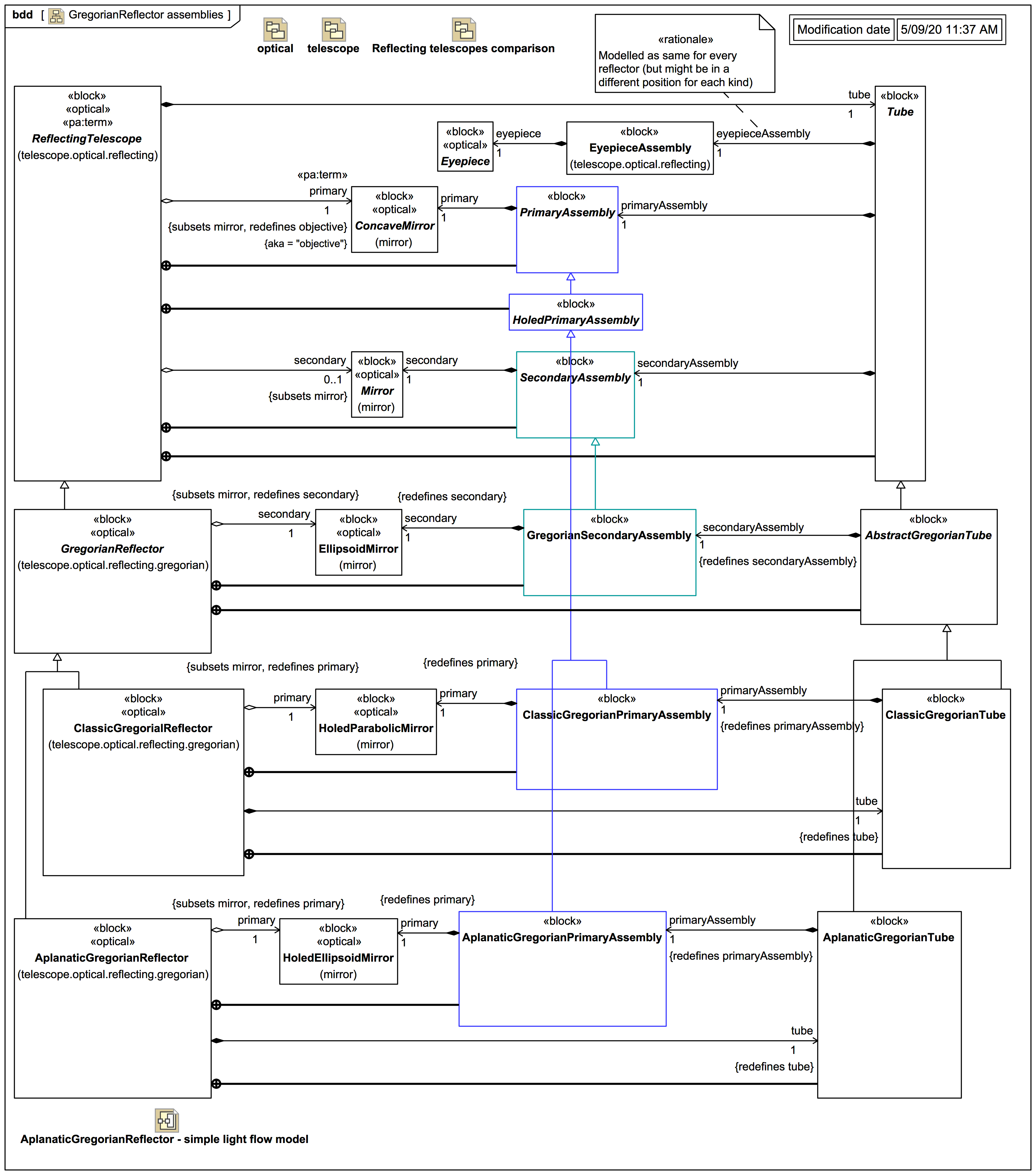

Gregorian primary and secondary assembly variations within the tube

Gallery

Tutorial

TRAIL: Webel SysML Parsing Analysis example: Optical telescopes from Wikipedia: Structure and port-based light flow model

Section

Slide kind

SysML Block Definition Diagram (BDD)

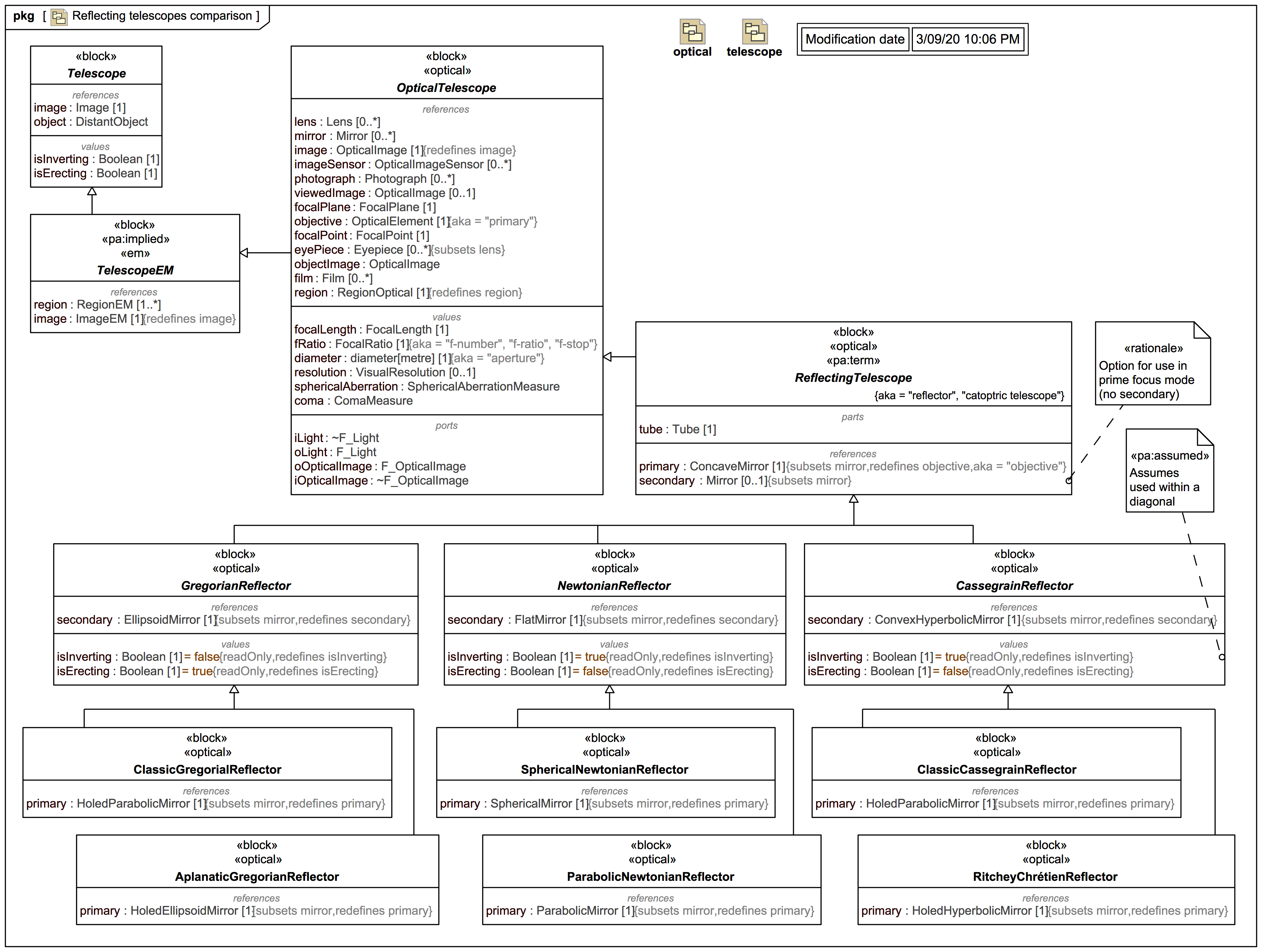

Comparison of reflecting telescopes so far

Gallery

Tutorial

TRAIL: Webel SysML Parsing Analysis example: Optical telescopes from Wikipedia: Structure and port-based light flow model

Section

Slide kind

SysML Package Diagram

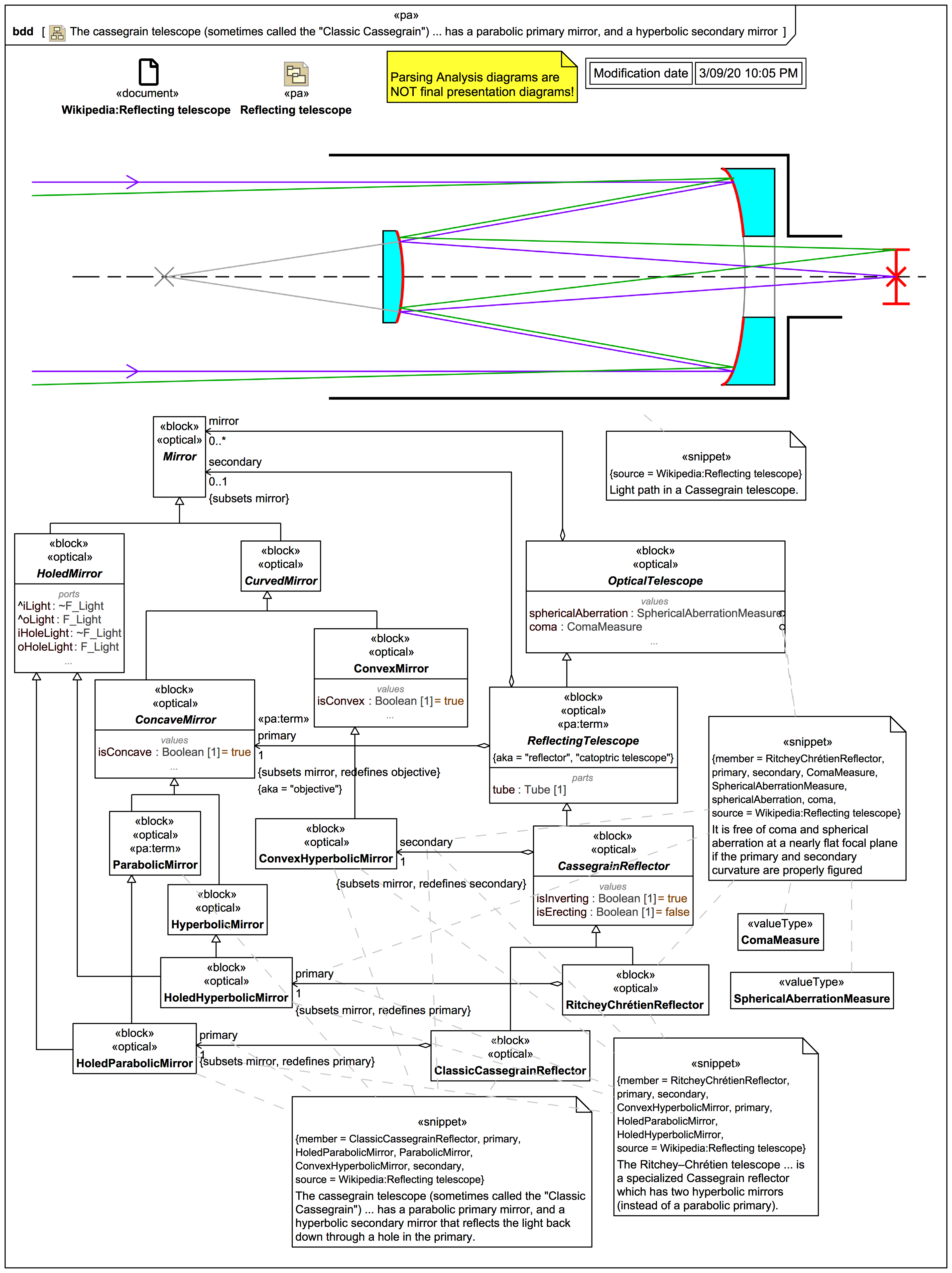

The classic Cassegrain telescope has a parabolic primary mirror and a hyperbolic secondary mirror

Gallery

Tutorial

TRAIL: Webel SysML Parsing Analysis example: Optical telescopes from Wikipedia: Structure and port-based light flow model

Section

Slide kind

SysML Block Definition Diagram (BDD)

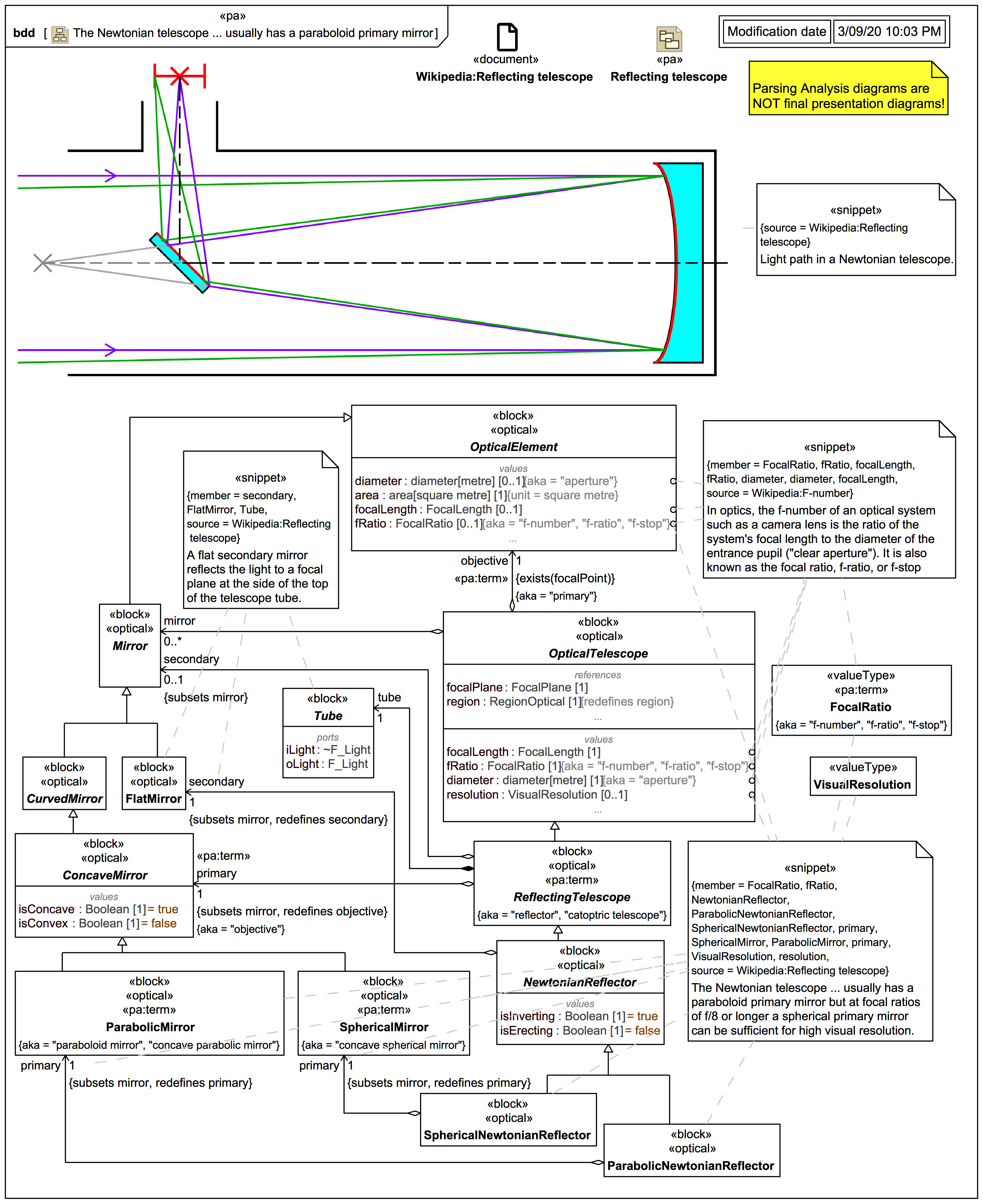

The Newtonian telescope has flat secondary mirror and a paraboloid or spherical primary mirror

Gallery

Tutorial

TRAIL: Webel SysML Parsing Analysis example: Optical telescopes from Wikipedia: Structure and port-based light flow model

Section

Slide kind

SysML Block Definition Diagram (BDD)

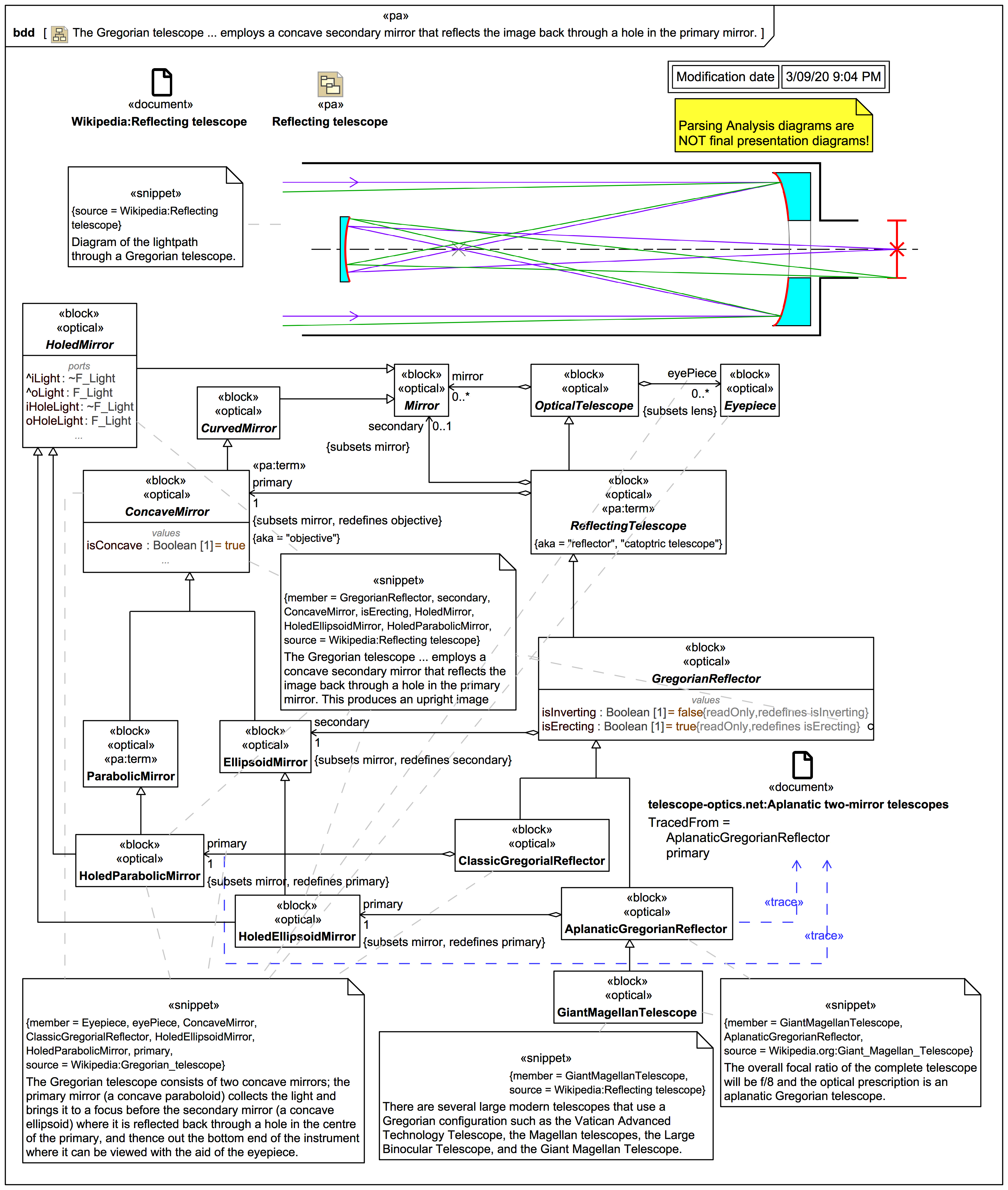

The Gregorian telescope employs a concave secondary mirror that reflects the image back through a hole in the primary mirror.

Gallery

Tutorial

TRAIL: Webel SysML Parsing Analysis example: Optical telescopes from Wikipedia: Structure and port-based light flow model

Section

Slide kind

SysML Block Definition Diagram (BDD)

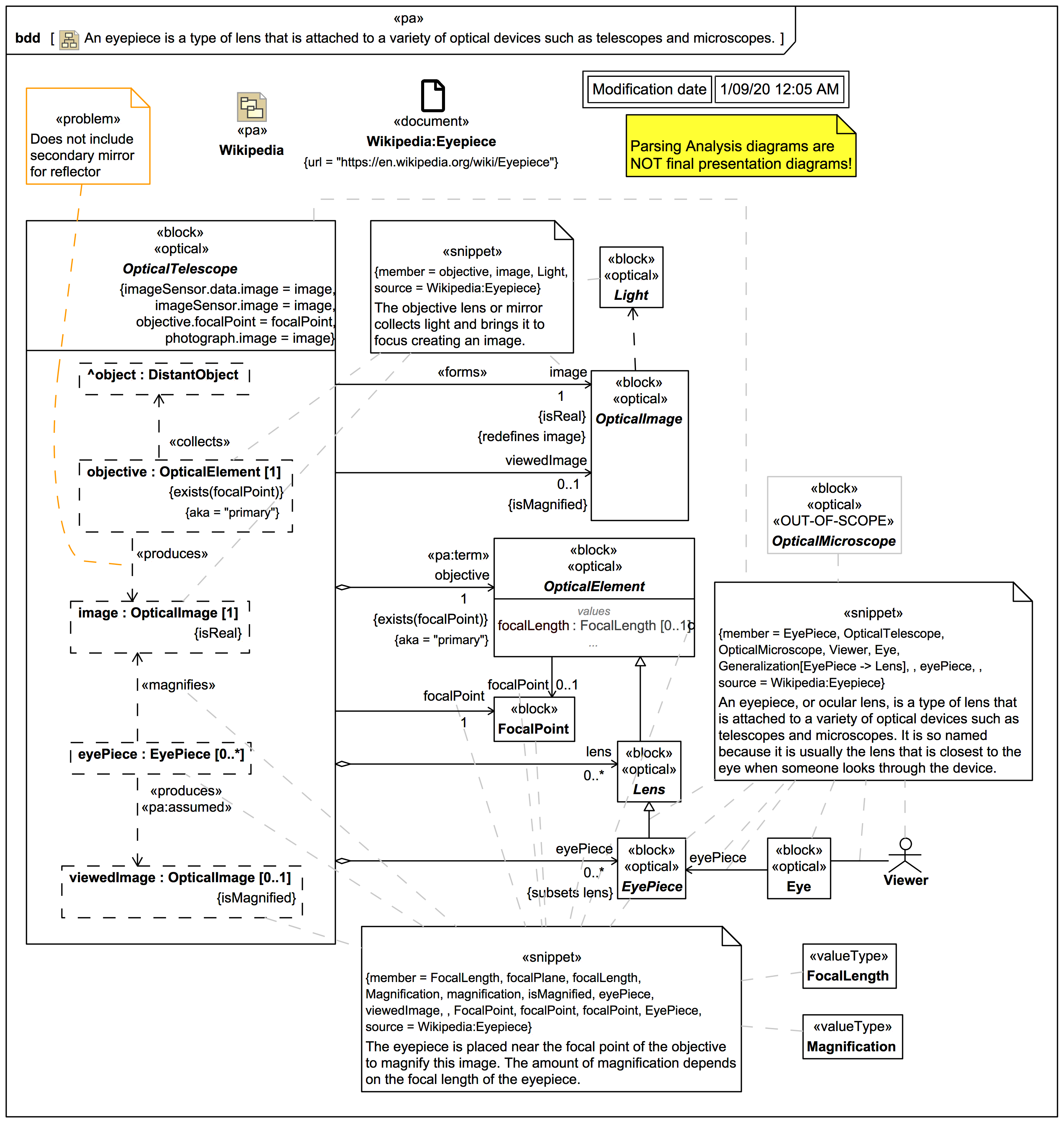

An eyepiece is a type of lens that is attached to a variety of optical devices such as telescopes and microscopes.

Gallery

Tutorial

TRAIL: Webel SysML Parsing Analysis example: Optical telescopes from Wikipedia: Structure and port-based light flow model

Section

Slide kind

SysML Block Definition Diagram (BDD)

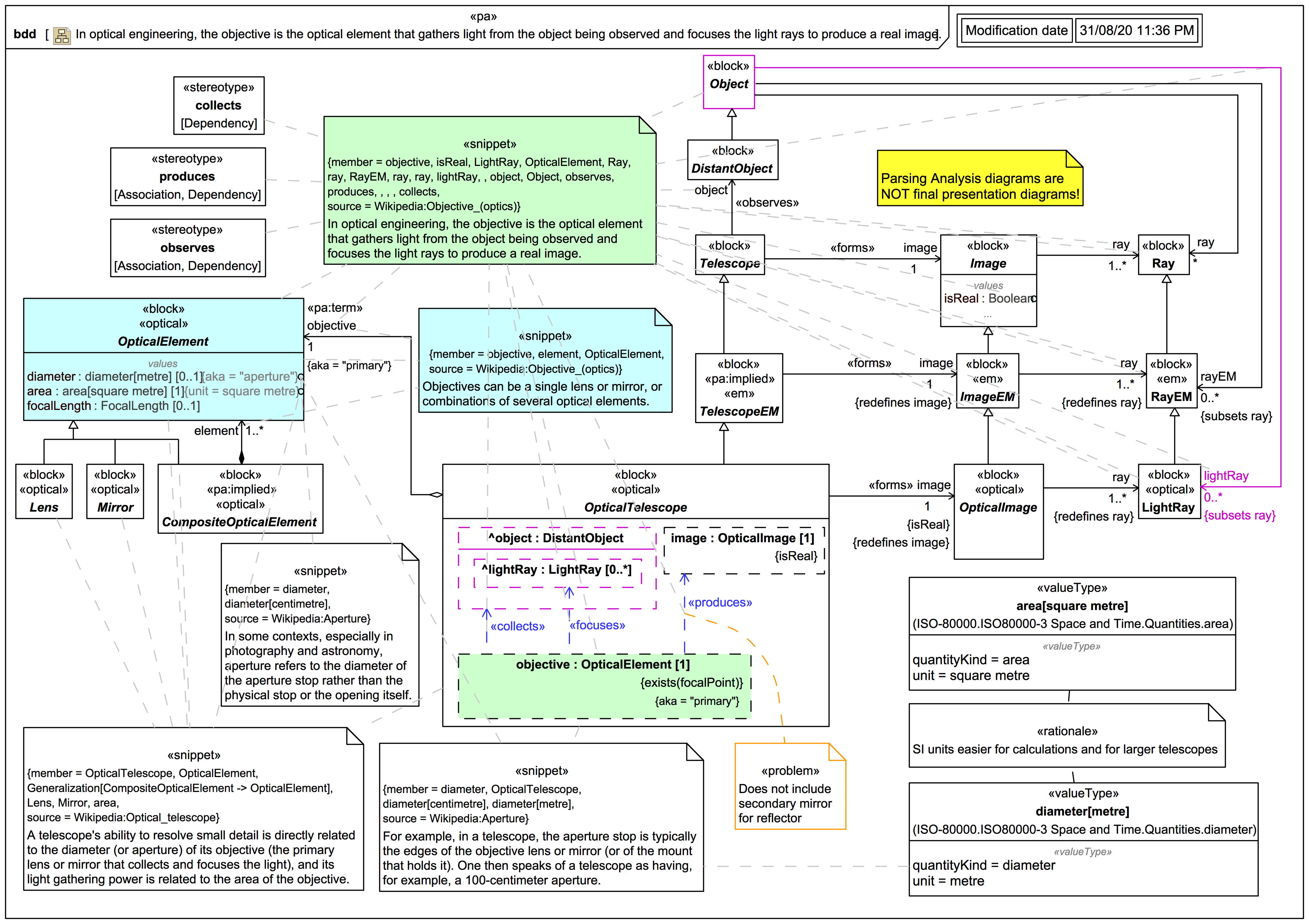

The objective is the optical element that gathers light from the object being observed and focuses the light rays

Gallery

Tutorial

TRAIL: Webel SysML Parsing Analysis example: Optical telescopes from Wikipedia: Structure and port-based light flow model

Section

Slide kind

SysML Block Definition Diagram (BDD)

The neutron is classified as a hadron, because it is a composite particle made of quarks.

Gallery

Tutorial

TRAIL: Webel SysML Parsing Analysis example: A particle physics taxonomy from Wikipedia

Section

Slide kind

SysML Block Definition Diagram (BDD)

Protons are spin-1/2 fermions and are composed of three valence quarks, making them baryons

Gallery

Tutorial

TRAIL: Webel SysML Parsing Analysis example: A particle physics taxonomy from Wikipedia

Section

Slide kind

SysML Block Definition Diagram (BDD)

The minimum on mesons

This content has been marked as discussing an ADVANCED topic!

Gallery

Tutorial

TRAIL: Webel SysML Parsing Analysis example: A particle physics taxonomy from Wikipedia

Section

Slide kind

SysML Block Definition Diagram (BDD)

Mass of charged leptons and decay (Part 2)

Gallery

Tutorial

TRAIL: Webel SysML Parsing Analysis example: A particle physics taxonomy from Wikipedia

Section

Slide kind

SysML Block Definition Diagram (BDD)

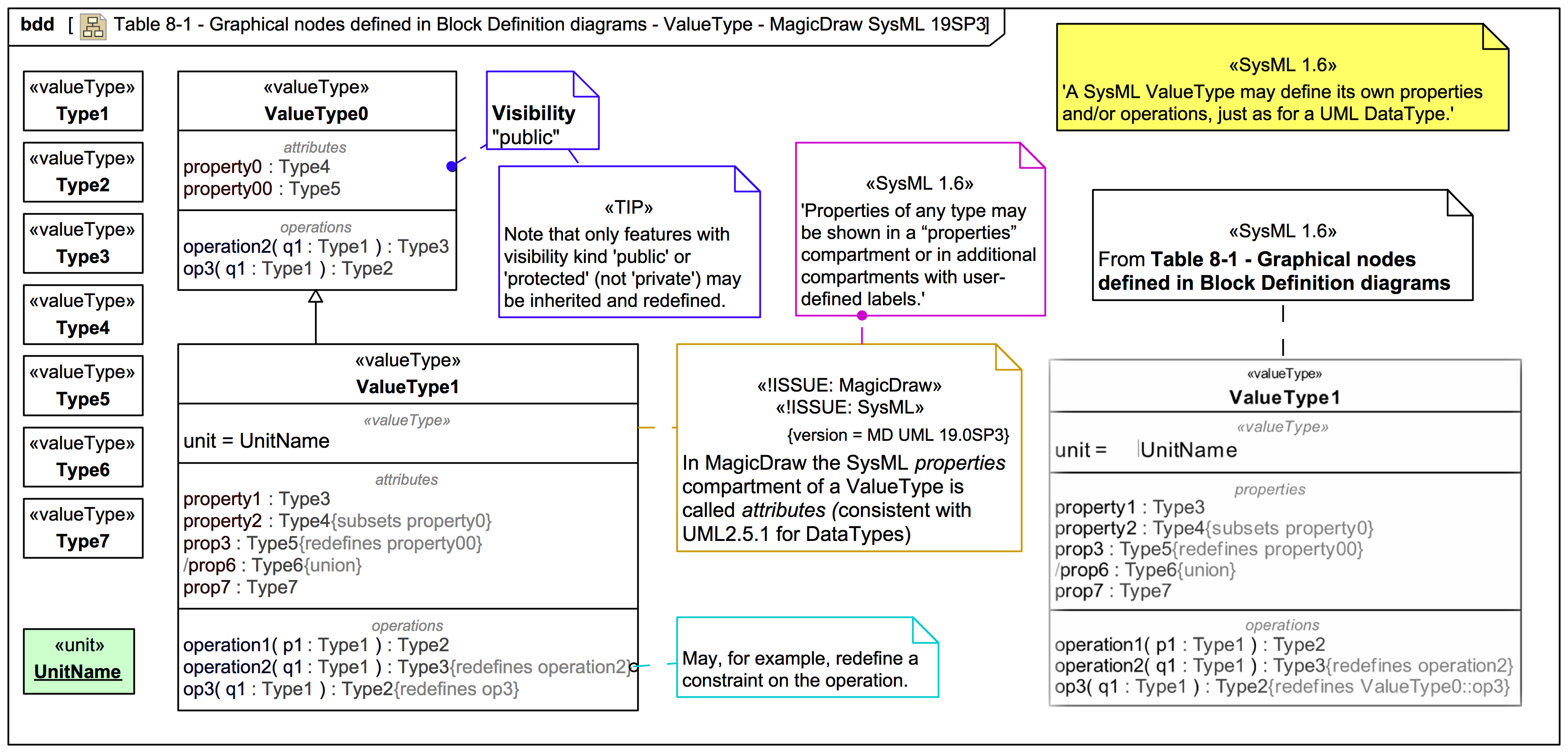

Table 8-1 - Graphical nodes defined in Block Definition diagrams - ValueType - MagicDraw SysML 19SP3

This content has been marked as discussing an ADVANCED topic!

Gallery

Tutorial

TRAIL: Webel's ultimate guide to Systems Modeling Language (v1) with MagicDraw/Cameo

Section

08:02: The SysML ValueType, Unit, and using values

Slide kind

SysML Block Definition Diagram (BDD)

MagicDraw/Cameo: You can set a Property as redefined/subsetted by another in a Class Diagram or BDD by dragging its label from an Association end onto the label of another Property on an Association end then choosing 'Set As Redefined/Subsetted Property'

ProxyPort::1_not_fullport Proxy ports shall not also be full ports. This applies even if some of the stereotypes are on subsetted or redefined ports.

Source

OMG Systems Modeling Language (SysML) 1.6
