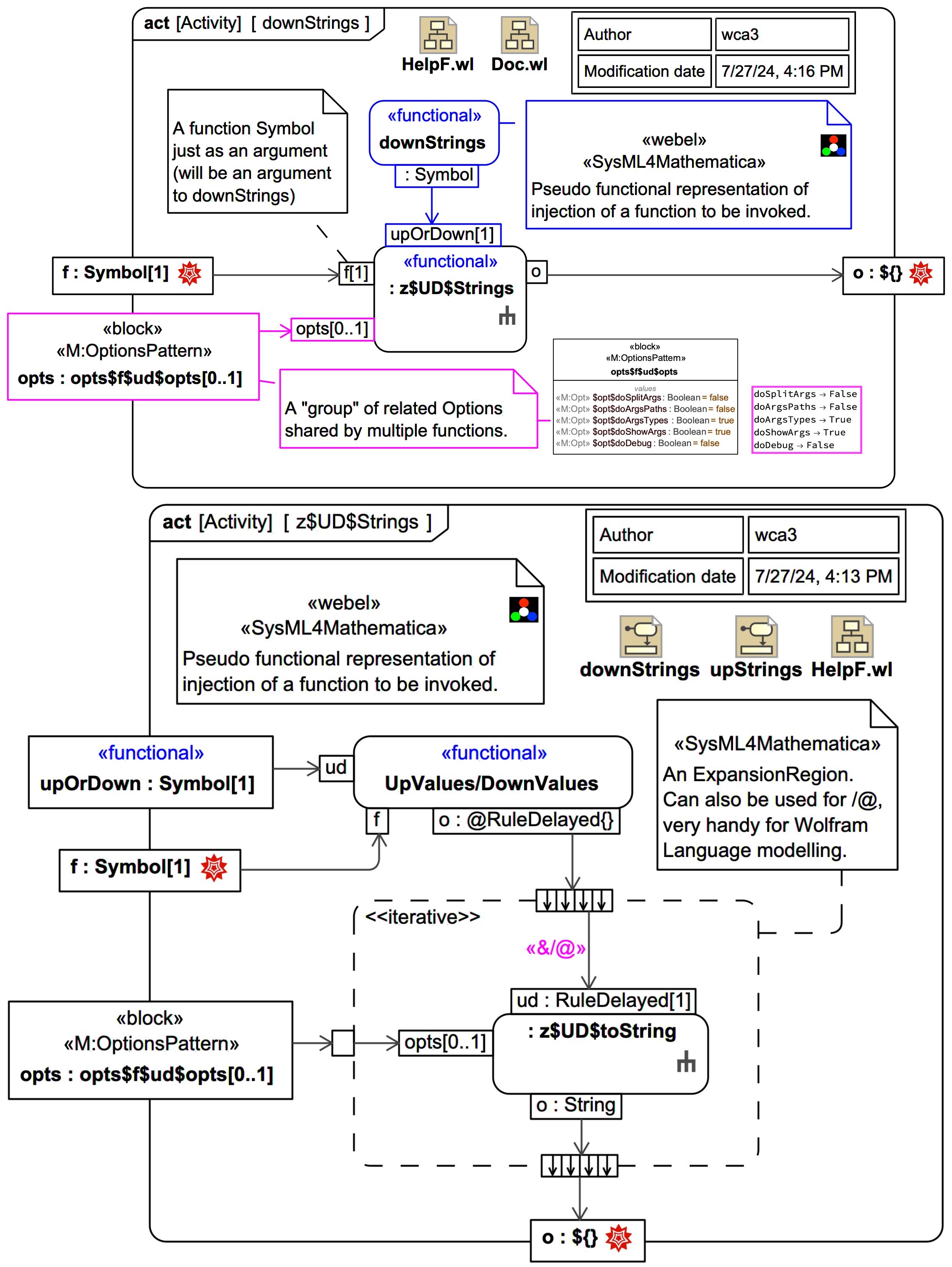

In Webel SysML4Mathematica (v1) the custom Stereotype «functional» indicates a "pseudo functional" representation of functional in SysML. There are limits to representation of functional programming in SysML, but it can be informative and is worth doing.

Simply passing a function Symbol around as an argument is easy. The tricky part is representing specific invocations of functions, especially when the number of arguments accepted by various injected functions differs, and where the return "type" varies, as it often can with Wolfram Language. In some cases this can be handled using an OpaqueBehavior with more than one 'out' Parameter.

Visit also:

Webel: SysML4Mathematica: SysML Activities and SysML Activity Diagrams CAN represent some functional programming paradigms (sort of). You can type Parameters by encapsulations of functions and pass them to/from InputPins/OutputPins of Actions.

Webel: Programmers who can count higher than one (1) know that you don't have to choose exclusively between object-orientation (and classes) and functional programming. You can have your cake and eat it. It's not XOR!

Relates to

The sigsUp function with OptionsPattern modelled as a SysML Activity (and with "pseudo functional" representation)

The sigsUp/Down functions as a SysML BDD: With Options Block and pseudo functional indicators

Extract Options from an OptionsPattern[] in a SysML Activity (2) DETAILED
