SysMLv1.x: Limitation: The 'body' (maths formula) of an OpaqueBehavior can't be synchronised (shared) with the 'constraint' of a ConstraintBlock (directly in the SysML model). Can lead to a WET (not DRY) model and breaks Single Source of Truth!

Webel IT Australia promotes the amazing Mathematica tool and the powerful Wolfram Language and offers professional Mathematica services for computational computing and data analysis. Our Mathematica tips, issue tracking, and wishlist is offered here most constructively to help improve the tool and language and support the Mathematica user community.
DISCLAIMER: Wolfram Research does not officially endorse analysis by Webel IT Australia.
Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
CAVEAT
COMPLICATION
LIMITATION
Policy level
INFORMATIVE
UML keywords
Constraint
OpaqueBehavior:body
OpaqueBehavior:language
Activity
OpaqueBehavior
Abstraction
SysMLv1.x keywords
ConstraintBlock
SysML Parametric Diagram
SysML Activity Diagram
Keywords
Click on the image to view it full size

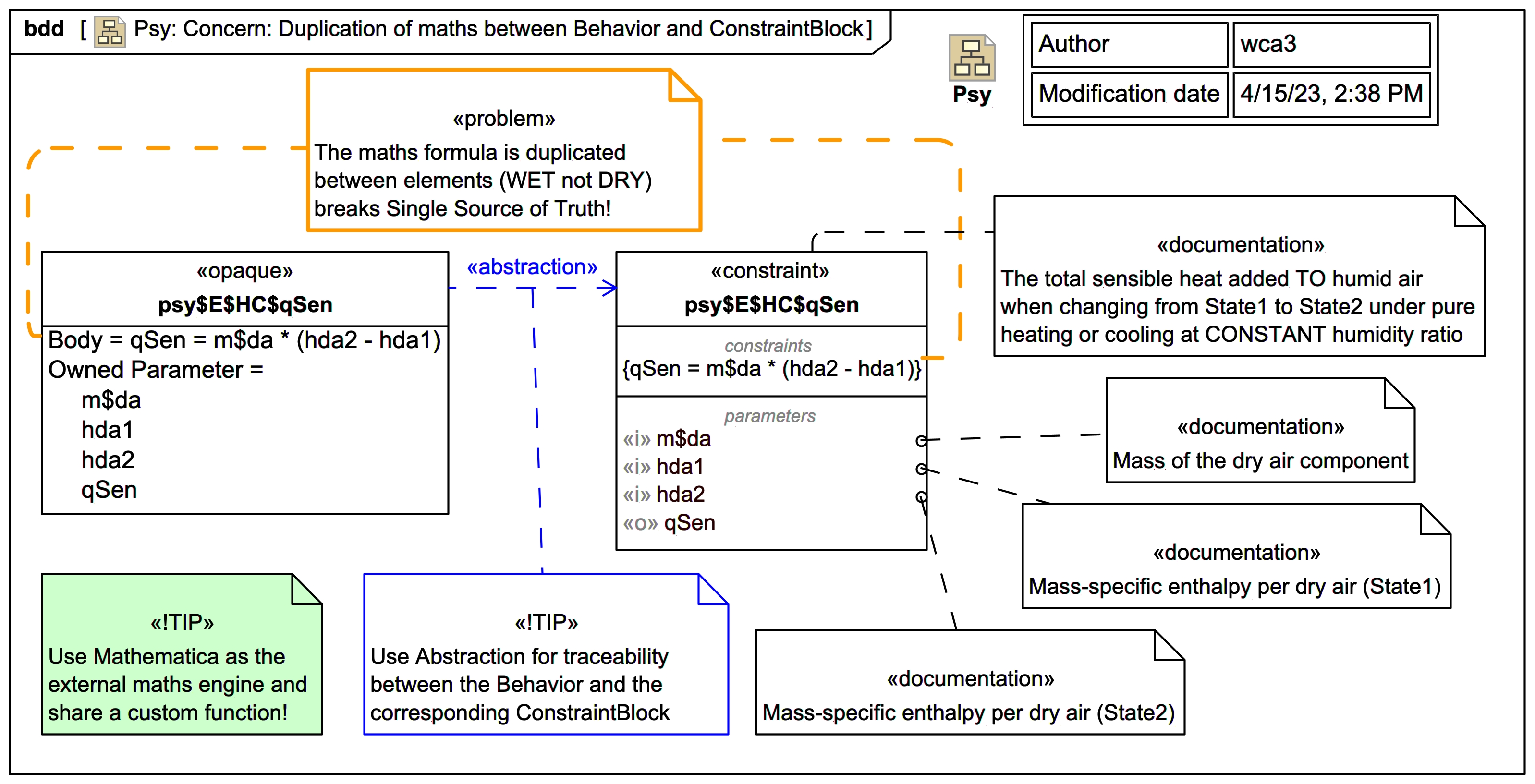

The 'body' of an OpaqueBehavior and the 'constraint' of a ConstraintBlock can't share their maths directly in the SysML model

In the example, the formula qSen = m$da * (hda2 - hda1) appears in two separate elements, which is "WET" and thus breaks the Single Source of Truth (SSOT) and Don't Repeat Yourself (DRY) policy.

TIP: You can use an Abstraction between the OpaqueBehavior and the corresponding ConstraintBlock (hopefully with exactly the same maths) for traceability
However, there is a solution. In Magic Model Analyst® (Cameo Simulation Toolkit®) you can use Mathematica as an external maths engine and then indeed share the maths via a custom function defined and auto-loaded in Mathematica:
Cameo Simulation Toolkit: You can use Mathematica as an external maths engine to share maths between an OpaqueBehavior and a ConstraintBlock using custom auto-loaded Mathematica functions (keeps a project nice and DRY and respects Single Source of Truth)
Visit also: HOWTO access custom (user-defined) Mathematica functions using Mathematica v13.2 as an external maths engine for SysML Parametrics (ConstraintBlocks) in Magic Model Analyst (Cameo Simulation Toolkit) versions 2021x, 2021xR1, 2022xR1
Visit also: HOWTO use Mathematica v12.3.2 as an external maths engine for SysML Parametrics (ConstraintBlocks) in Magic Model Analyst (Cameo Simulation Toolkit) versions 2021x, 2021xR1, 2022xR1
