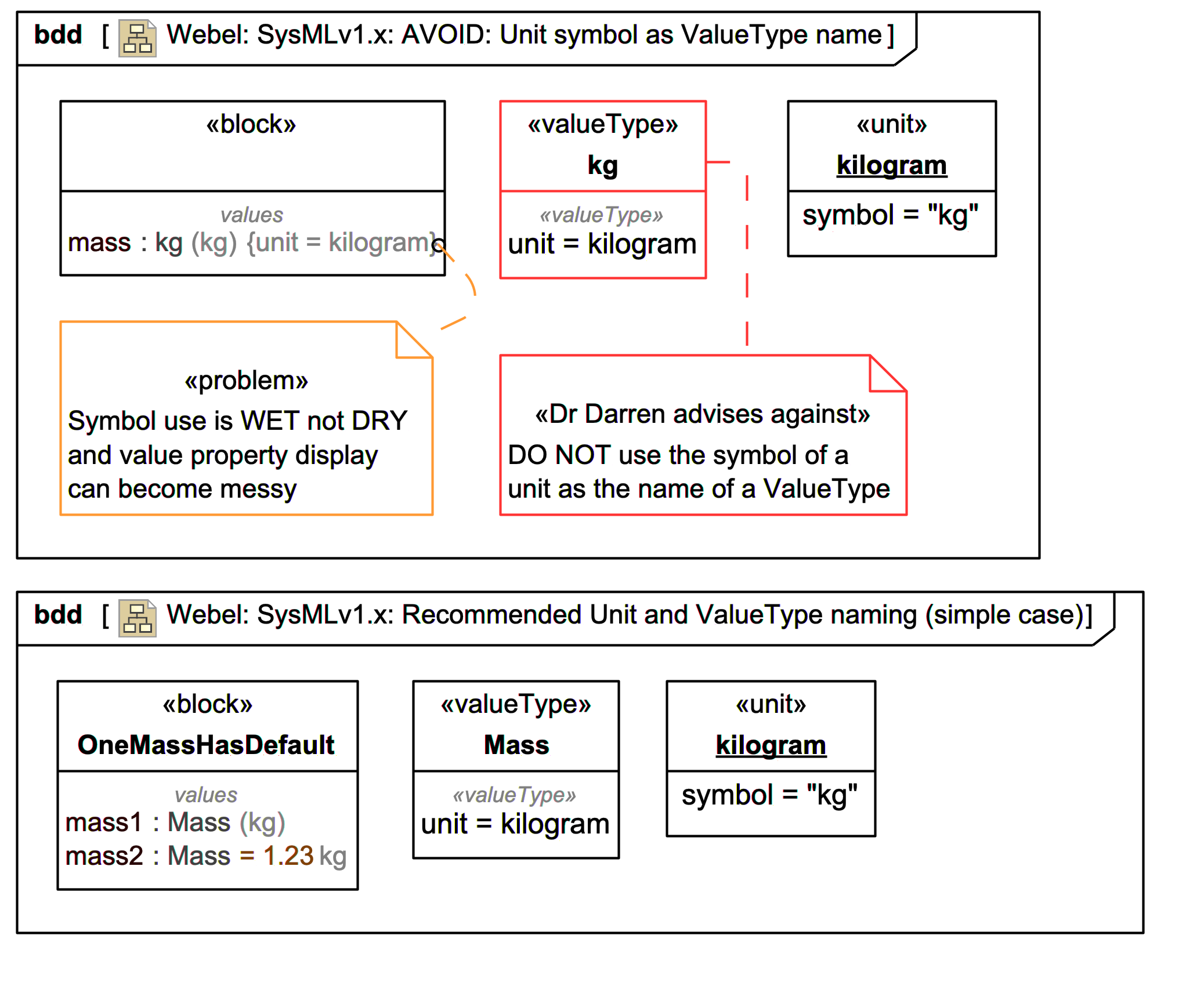

Webel: SysMLv1.x: AVOID (where possible) ValueType names that are the same as the name of units or unit symbols

If the unit is 'metre', the name of your ValueType should not be 'm', it might however be named or contain the word 'Length', 'Height', Radius, or 'Diameter'.

Note however:

SysMLv1.x: ValueType naming: The Webel convention is 'UpperCamelCase' (a.k.a. PascalCase).

If the unit is 'kilogram', the name of your ValueType should not be 'kg', it might however be named or contain the word 'Length', 'Height', Radius, or 'Diameter'.

And don't forget, you can strengthen the engineering context of your value properties by using more specific ValueType names:

Webel: SysMLv1.x: TIP: The name and documentation of a ValueType can indicate and specify more than just the unit and quantity kind. Example: A ClockFrequency may document how the frequency is measured. Example: WeightOnEarth.

Visit also: Webel: SysMLv1.x: AVOID (where possible) SysML Unit names that are the same as unit symbols. Unit names SHOULD start with a lower case Latin alpha letter. Custom Unit names should be a single lower case word or lowerCamelCase.

Visit also: MagicDraw/Cameo: SysMLv1.x: ValueType naming: The ISO-80000 libraries use 'lower case' (sometimes with spaces for compound units and/or with [scaling] indicated in square brackets).

Relates to

Figure 8-12 - Block diagram for the Wheel Package (WheelHubAssembly)

Figure 8-14: Defining Value Types with units of measure from the International System of Units (SI)
