A standard requirement includes properties to specify its unique identifier and text requirement. Additional properties such as verification status, can be specified by the user. Source OMG Systems Modeling Language (SysML) 1.6
Copy::2_same_text The text property of the client requirement is constrained to be a read-only copy of the text property of the supplier requirement and this applies recursively to all subrequirements Source OMG Systems Modeling Language (SysML) 1.6
Copy::1_source_and_taget_are_requirements A Copy dependency may only be created between two NamedElements that have a subtype of the abstractRequirement stereotype applied Source OMG Systems Modeling Language (SysML) 1.6
When a Copy dependency exists between two requirements, the requirement text of the client requirement is a read-only copy of the requirement text of the requirement at the supplier end of the dependency. Source OMG Systems Modeling Language (SysML) 1.6
A Copy dependency created between two requirements maintains a master/slave relationship between the two elements for the purpose of requirements re-use in different contexts Source OMG Systems Modeling Language (SysML) 1.6
A Copy relationship is a dependency between a supplier requirement and a client requirement that specifies that the text of the client requirement is a read-only copy of the text of the supplier requirement. Source OMG Systems Modeling Language (SysML) 1.6
Figure 16-3: Links between requirements and design Gallery Tutorial TRAIL: The SysML-1.6 Hybrid SUV sample and specification diagrams in MagicDraw/Cameo (with annotations) [UNDERGOING UPDATE to SysML1.7] Section Section: SysML-1.6 specification diagrams: 16 Requirements Slide kind SysML Requirement Diagram
Figure 16-2: Requirements Derivation Gallery Tutorial TRAIL: The SysML-1.6 Hybrid SUV sample and specification diagrams in MagicDraw/Cameo (with annotations) [UNDERGOING UPDATE to SysML1.7] Section Section: SysML-1.6 specification diagrams: 16 Requirements Slide kind SysML Requirement Diagram
Figure 16-1: Abstract Syntax for Requirements Stereotypes Gallery Tutorial TRAIL: The SysML-1.6 Hybrid SUV sample and specification diagrams in MagicDraw/Cameo (with annotations) [UNDERGOING UPDATE to SysML1.7] Section Section: SysML-1.6 specification diagrams: 16 Requirements Slide kind UML Profile Diagram
Figure D.14 - Requirements Relationships Expressed in Tabular Format (Table) Gallery Tutorial TRAIL: The SysML-1.6 Hybrid SUV sample and specification diagrams in MagicDraw/Cameo (with annotations) [UNDERGOING UPDATE to SysML1.7] Section Section: SysML-1.6: HSUV sample Slide kind MagicDraw/Cameo: table

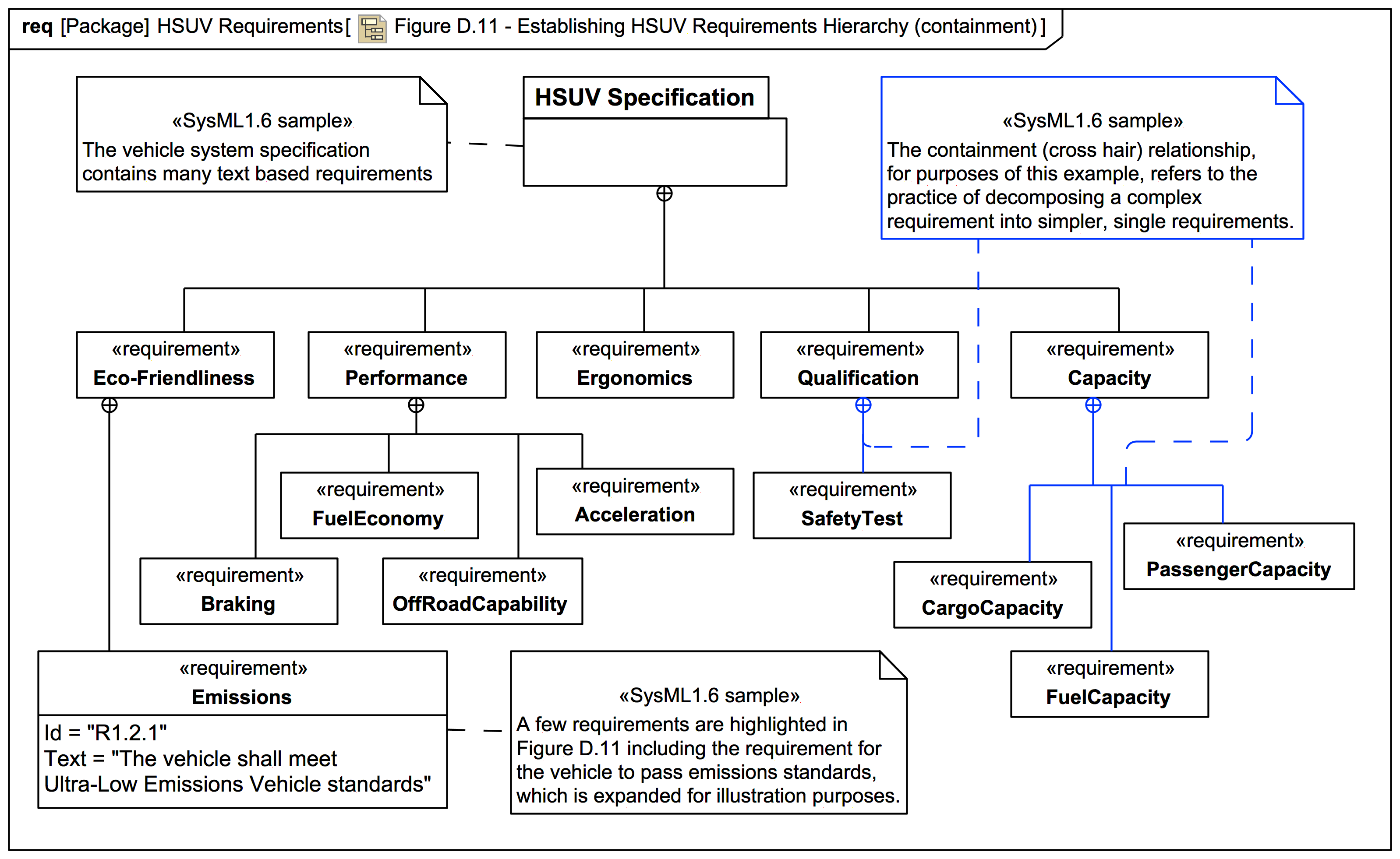

Figure D.11 - Establishing HSUV Requirements Hierarchy (containment) Gallery Tutorial TRAIL: The SysML-1.6 Hybrid SUV sample and specification diagrams in MagicDraw/Cameo (with annotations) [UNDERGOING UPDATE to SysML1.7] Section Section: SysML-1.6: HSUV sample Slide kind SysML Requirement Diagram
