SysMLv2: A part usage nested in (owned by) an occurrence and declared nonunique must be a referential «ref part» (that subsets the nonunique Parts::parts) not a composite «part» (that subsets the UNIQUE Items::Item::subparts)

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
CONSTRAINT
MODELLING
TIP
Policy level
INFORMATIVE
Specification keywords
SysMLv2
SysMLv2 keywords
part usage
referential
composite
Feature::isComposite
unique
nonunique
Parts::parts
Items::Item::subparts
occurrence
Keywords
Click on the image to view it full size

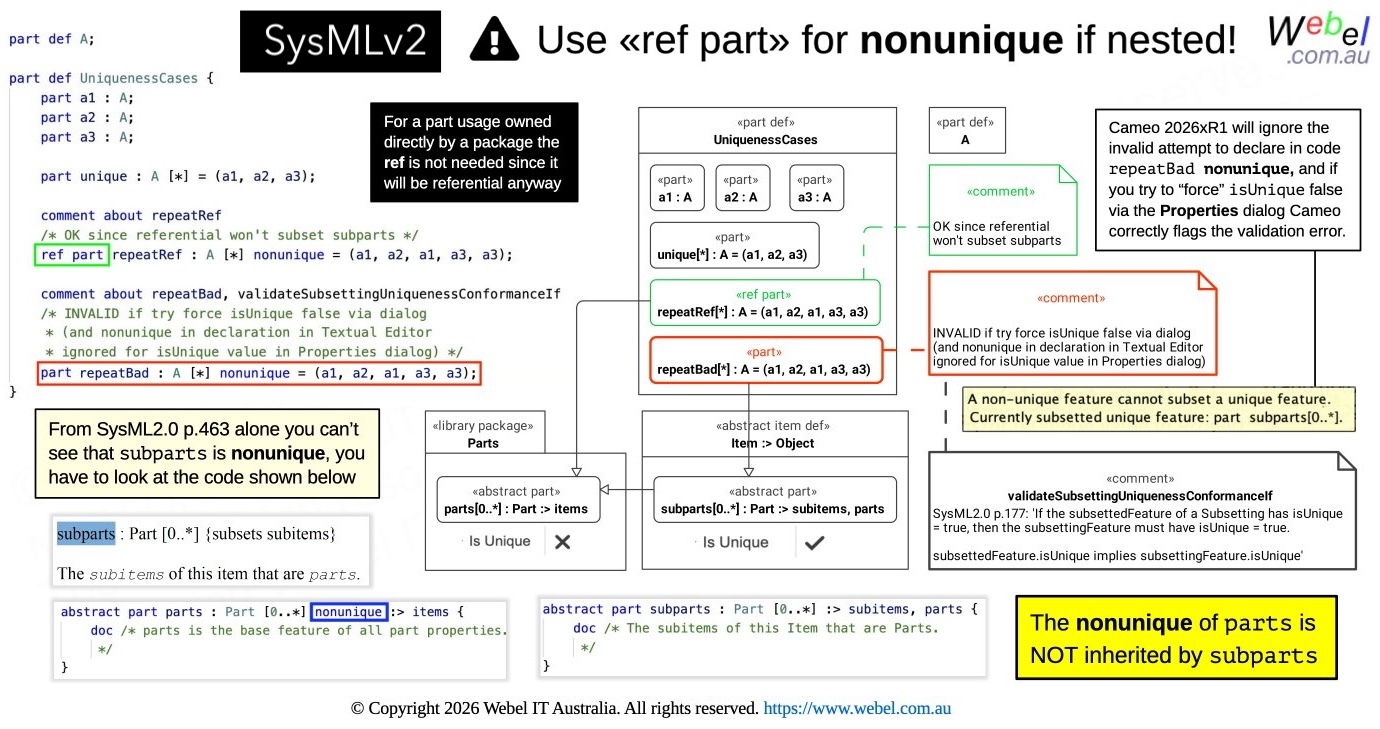

This page features a particularly detailed SysMLv2 "rich slide" (learn more here)

A part usage nested in (owned by) an occurrence and declared nonunique must be a referential «ref part» (that subsets the nonunique Parts::parts) not a composite «ref part» (that subsets the UNIQUE Items::Item::subparts), otherwise it fails this constraint:

validateSubsettingUniquenessConformanceIf

'If the subsettedFeature of a Subsetting has isUnique = true, then the subsettingFeature must have isUnique = true.'

subsettedFeature.isUnique implies subsettingFeature.isUnique

For a full explanation visit:

SysML2.0: GOTCHA: p.632 subparts : Part [0..*] {subsets subitems}: Does not indicate that subparts is nonunique (has consequences for user model nonunique usages)

Note that this does not apply to part usages owned directly by a package (which is not an occurrence), since such part usages are referential anyway.
