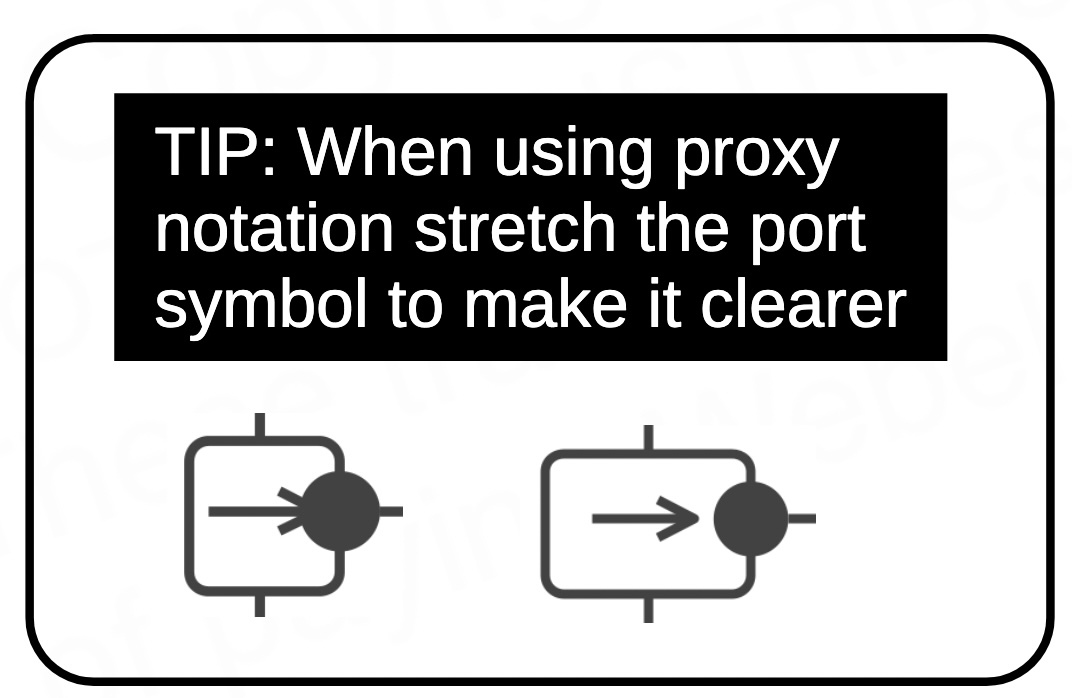

SysMLv2: Cameo: TIP: Proxy connection notation combined with ports can sometimes obscure the direction indicators in the little port box boundary symbols. Just stretch the little port box a bit.
