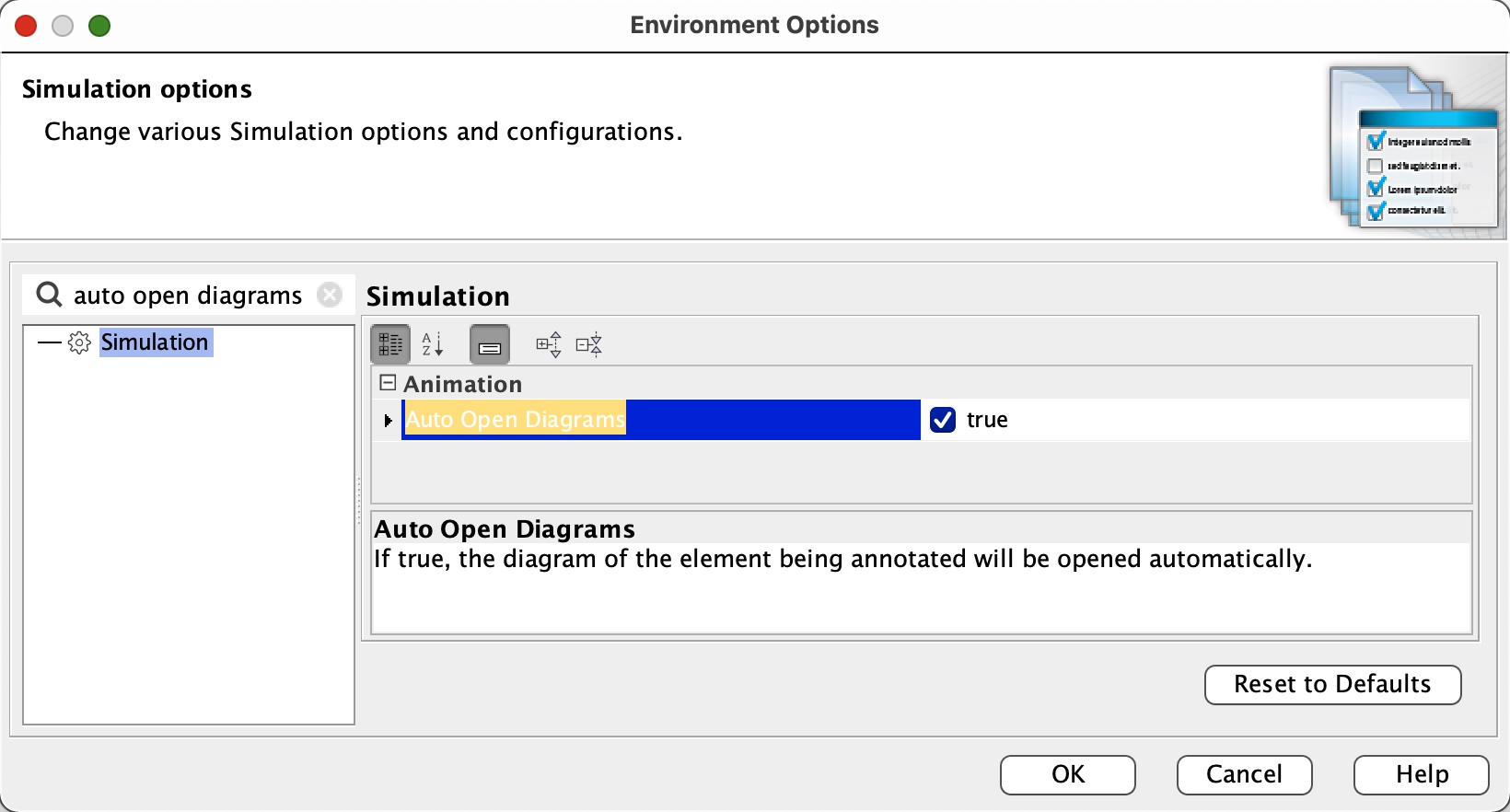

Cameo Simulation Toolkit: Before you run a simulation consider enabling Auto Open Diagrams under Environment Options -> Simulation. Alternatively, consider using split horizontal or vertical window groups (if there are only a few relevant diagrams).

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
Policy level
Keywords
Click on the image to view it full size

Whether enabling the Auto Open Diagrams option is a good idea depends on what you wish to view when, and whether you are interacting with the simulation, or just letting it run through (such as when performing a screencast recording of a simulation execution).

Having Auto Open Diagrams enabled is not always ideal if you have lots of "wrapped" Behaviors for State 'entry', 'doActivity', or 'exit' Behavior.

If you only have a few Activity Diagrams and StateMachine Diagrams you might instead consider having them all open at once using the split window group facility in MagicDraw/Cameo.
