MagicDraw/Cameo: supports HTML hyperlinks directly on model elements, and they are launchable from model element symbols in diagrams.

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
CAPABILITY
FEATURE
TOOL
UML keywords
symbol
Element
Keywords
Click on the image to view it full size
This diagram shows vendor-specific tool colours for symbols but this is not Webel Best Practice
Relates to

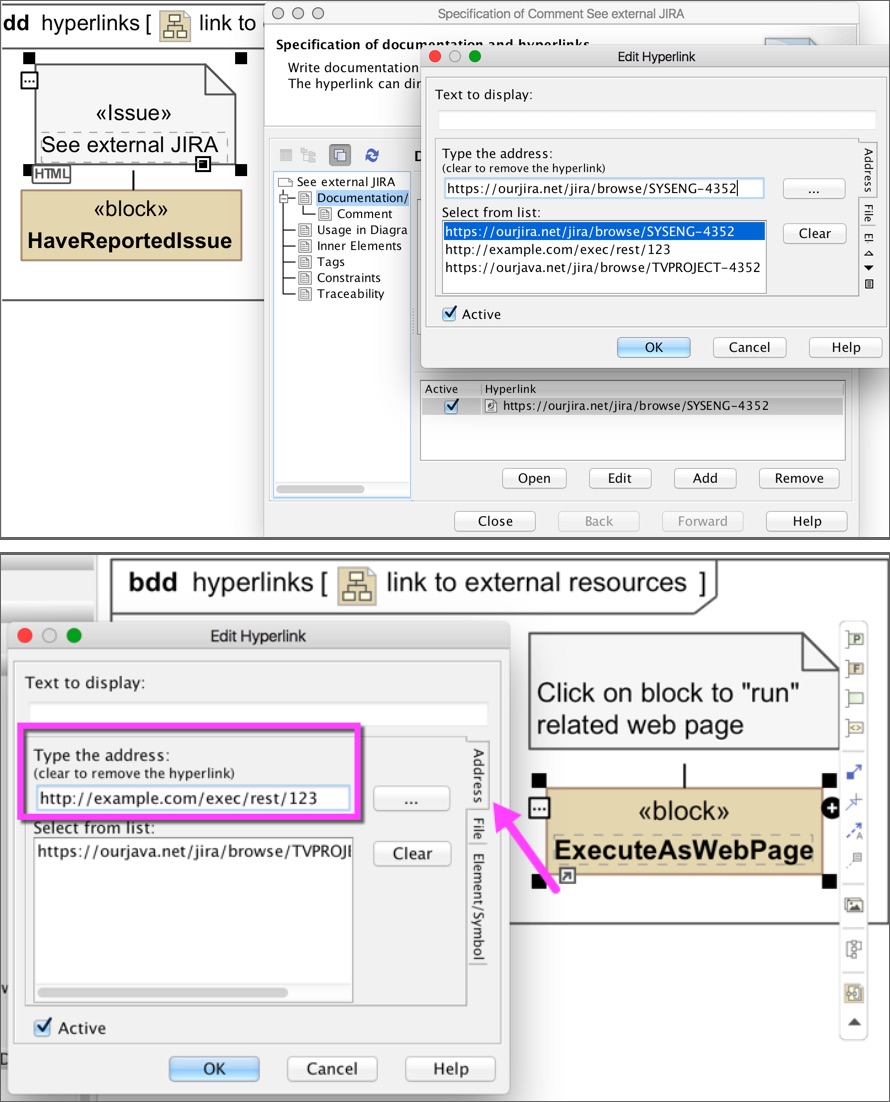

Example: Linking to an external JIRA issue tracking page using a Comment extension with tagged values metadata
Related notes
[CAPABILITY, FEATURE, TIP] In MagicDraw/Cameo one can just drag the IBD or BDD of a Block from the model browser onto parts that are typed by that Block to make them the default hyperlink target for that part (so one can just "open the parts up" recursively to navigate the system).
[CAPABILITY, FEATURE, TOOL] MagicDraw/Cameo: supports HTML (including hyperlinks) in String based tagged value (Stereotype property) fields. Just activate HTML mode during tagged value editing.
