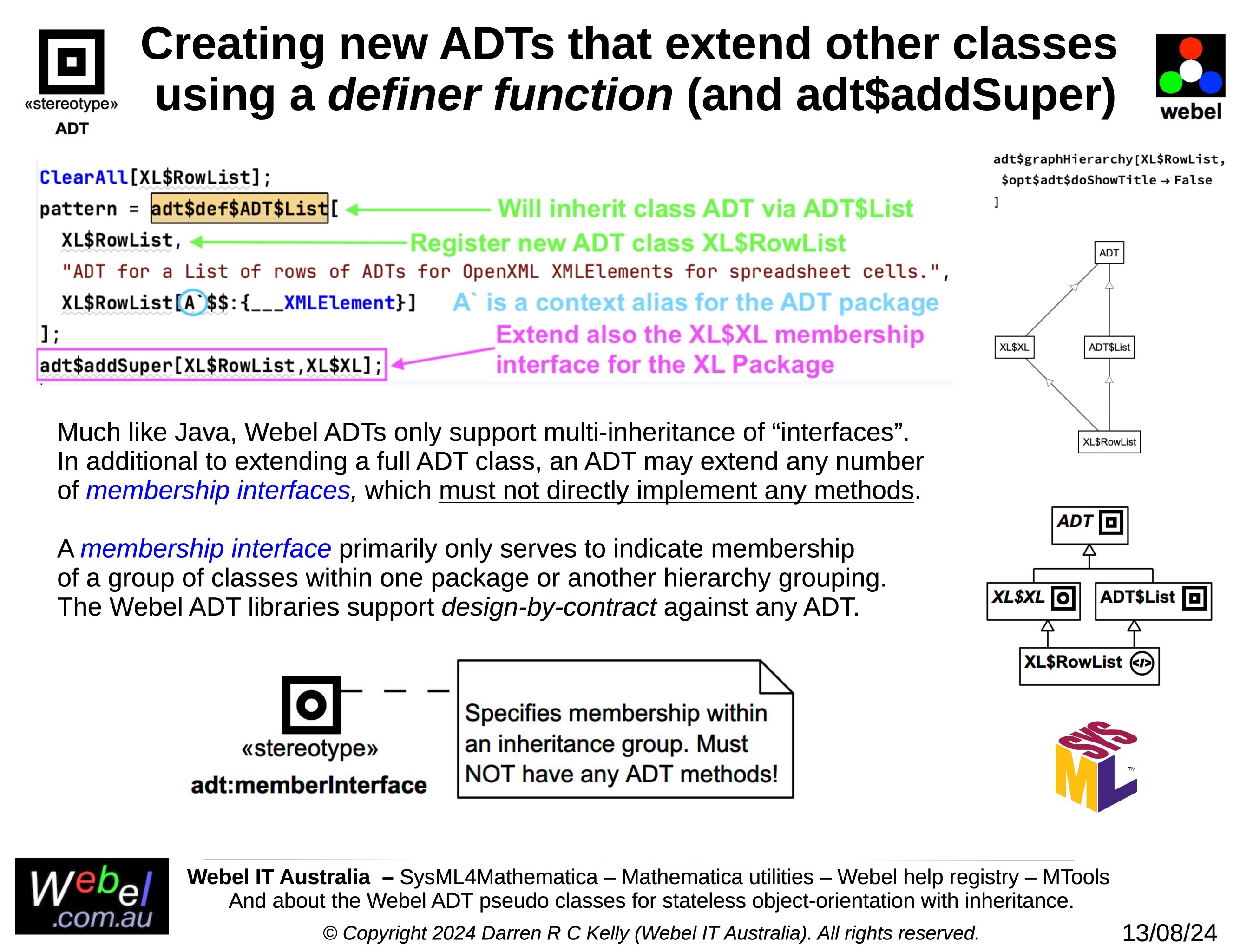

Creating new ADTs that extend other classes using a definer function (and adt$addSuper)

Gallery
Tutorial
[TECHNICAL SLIDE TRAIL] The Webel libraries for Wolfram Mathematica: With SysMLv1 models.
Section
SECTION: The Webel Abstract Data Type (ADT) stateless pseudo-classes with inheritance (with SysMLv1 models)
UML keywords
Generalization
Property::redefinedProperty
Webel Mathematica keywords
ADT`
Webel ADT
ADT$List
XL$XL
XL$RowList
«adt:memberInterface»
adt$addSuper
ADT definer function
Keywords
Click on the image to view it full size
For reference, some associated Policy Notes (you don't need to visit these links yet):
Mathematica: Webel ADT pseudo classes: There is an 'ADT' universal base that has no supers. It "blesses" every other sub-class ADT by populating it with some common ADT-Method UpValues against a signature pattern via the 'adt$def$All[]' definer function.
Mathematica: Webel ADT pseudo classes: DEFINITION/CONVENTION: Functions that populate ADTs with reusable ADT-method UpValues are called 'definers' and include '$def' in the name after a Package scope indicator: Example: adt$def$ADT, my$def$MY$CleverList
Mathematica: Webel ADT pseudo classes: POLICY: Multiple inheritance is supported via ONE (only) ADT-Class and one or more ADT-MemberInterfaces (which have no ADT-Method UpValues)
Mathematica: Webel ADT pseudo classes: POLICY/DEFINITION: Every "hard coded" definer or defining client of a definer has a corresponding ADT ArchetypeClass. Example ("hard coded"): The definer 'my$def$MY$SmartList' has ArchetypeClass 'MY$SmartList'.
Up next
Extending ADT sub-classes represented as SysML Blocks with redefined wrapped ‘$$’
Notes
[CONVENTION, POLICY]{STRICT} Mathematica: Webel ADT pseudo classes: POLICY: Every named concrete Abstract Data Type (ADT) has a ONE unique "signature" (which is the pattern passed to the "definer" functions). To vary a signature, define another unique ADT name.
[POLICY]{STRICT} Mathematica: Webel ADT pseudo classes: POLICY: The expression '$$' is reserved as the primary named parameter for the defining pattern of all ADT classes that extend the universal base 'ADT' class.
[CONVENTION, NAMING, POLICY]{STRONG} Mathematica: Webel ADT pseudo classes: DEFINITION/CONVENTION: Functions that populate ADTs with reusable ADT-method UpValues are called 'definers' and include '$def' in the name after a Package scope indicator: Example: adt$def$ADT, my$def$MY$CleverList
[POLICY]{STRICT} Mathematica: Webel ADT pseudo classes: There is an 'ADT' universal base that has no supers. It "blesses" every other sub-class ADT by populating it with some common ADT-Method UpValues against a signature pattern via the 'adt$def$All[]' definer function.
[POLICY]{STRICT} Mathematica: Webel ADT pseudo classes: POLICY: Definer functions MUST return the self-declared or injected 'pattern' that determines the unique "ADT-signature" of the defined ADT class.
[CONVENTION, NAMING, POLICY]{STRICT} Mathematica: Webel ADT pseudo classes: POLICY/DEFINITION: Every "hard coded" definer or defining client of a definer has a corresponding ADT ArchetypeClass. Example ("hard coded"): The definer 'my$def$MY$SmartList' has ArchetypeClass 'MY$SmartList'.
[POLICY]{STRICT} Mathematica: Webel ADT pseudo classes: ADTs that define membership of ADT-classes in a domain package have ADT-signature MemberInterface[$$:None] and MUST NOT populate ADT-method UpValues in their definers.
[POLICY]{STRICT} Mathematica: Webel ADT pseudo classes: POLICY: Multiple inheritance is supported via ONE (only) ADT-Class and one or more ADT-MemberInterfaces (which have no ADT-Method UpValues)
