MagicDraw SysML/Cameo: If you have a SINGLE Allocate from an Activity to a Block it will set that Block to be the Behavior::/context for that Activity.

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
FEATURE
GOTCHA
MODELLING
TIP
TOOL
Policy level
INFORMATIVE
Specification keywords
SysML-1.6
SysML-1.7
UML keywords
Behavior::/context
Behavior
Activity
SysMLv1.x keywords
Allocate
Block
Keywords

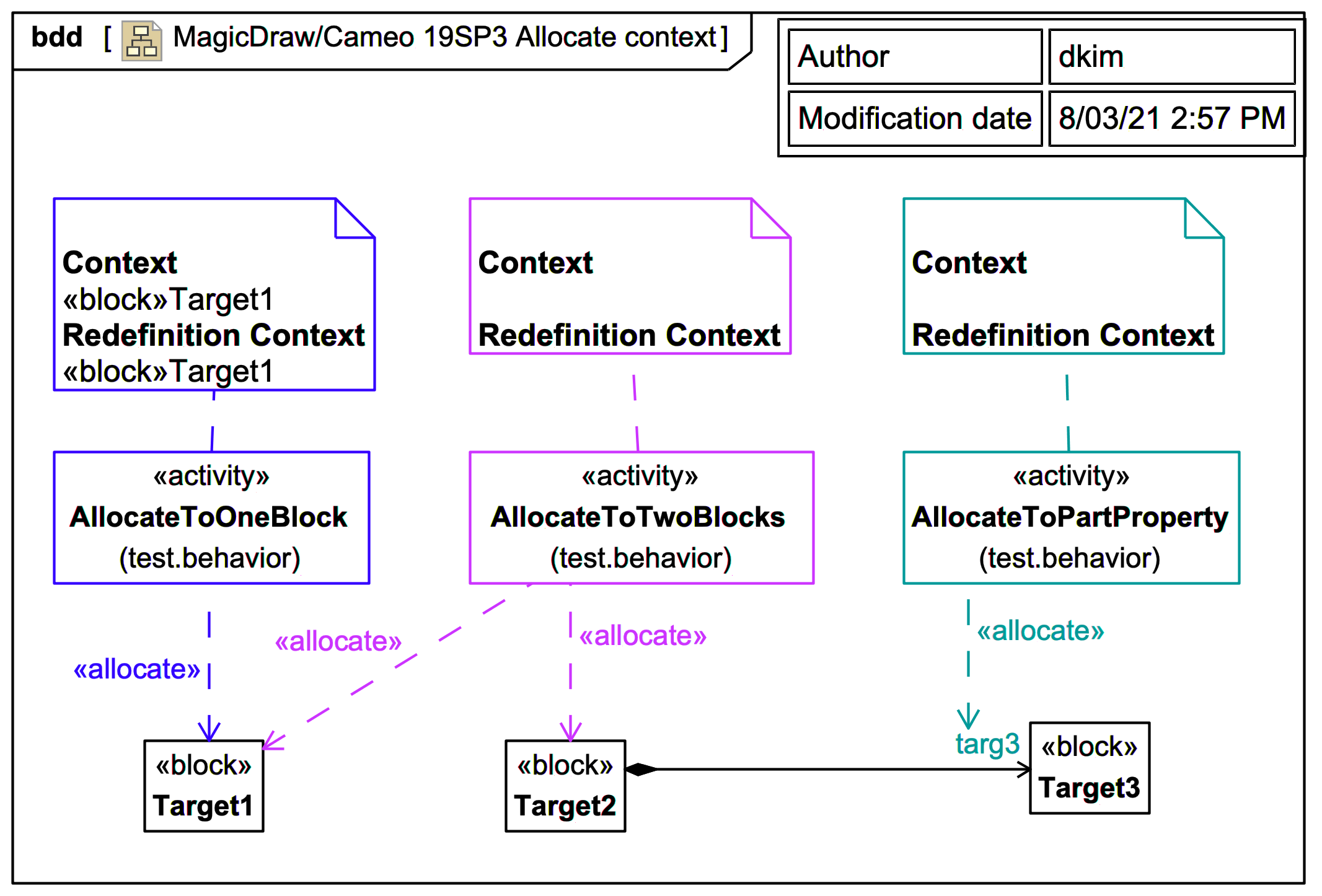

Click on the image to view it full size

This seems to be a pragmatic tool-specific feature, as there's nothing about this in the SysML 1.6 spec.

Note that if you have two Allocates from one Activity to 2 blocks the Activity will NOT have a Behavior::/context defined
Relates to
Refrigerant cycle Activity allocation
Related notes
[ANTI-PATTERN, CAVEAT, MODELLING]{OPTION} SysML: Having a Behavior owned by a Block it is allocated to may undermine purist functional allocation (because it presupposes the element of the physical solution that carries out the function)
