MagicDraw SysML/Cameo: You can customise the generic query table diagram kind to check that the context Blocks of your Parametric Diagrams only contain BindingConnectors (not Connectors)

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
Specification keywords
UML keywords
SysMLv1.x keywords
Keywords

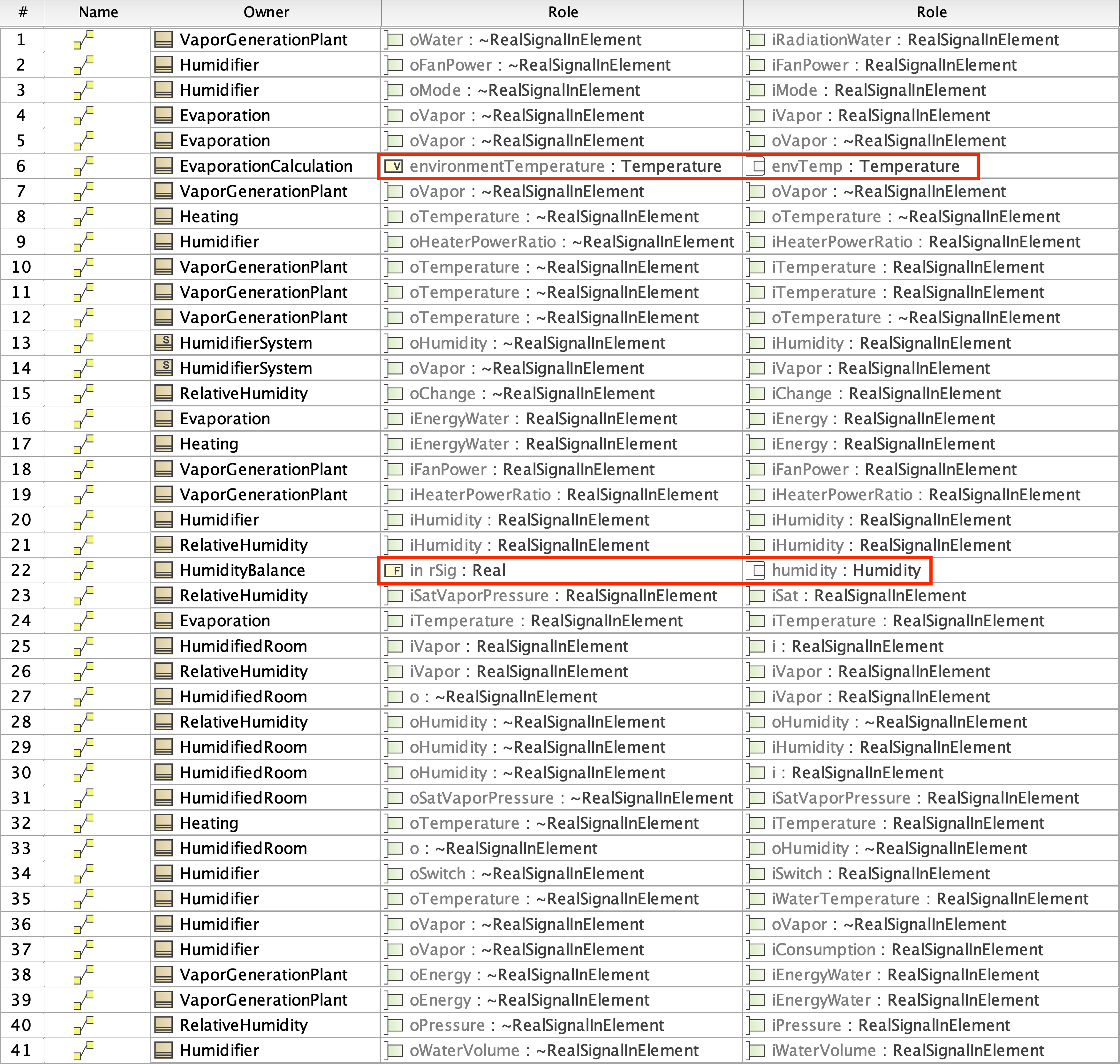

Click on the image to view it full size

In a Generic Table diagram just choose Connector as Element Type, set your Scope (optional), using the Columns widget at the top choose to show Role (Connector End A) and Role (Connector End B).

In the example, some Connectors have ends of type ConstraintParameter, which should only be true for a BindingConnector. You can use the Refactor > Convert To context menu item directly on the table cell for the Connector in the table to fix it. (Don't just select the row, it has to be the specific cell.)

This handy tip is, of course, in addition to performing any full model validation.
