model Spring
Flange p1;
Flange p2;
end Spring;
connector Flange
flow Real f;
Real lV;
end Flange;
The types for f and lV are inconsistent, they should be Force and Velocity respectively. (It validates fine in Wolfram SystemModeler, it’s just not consistent.)

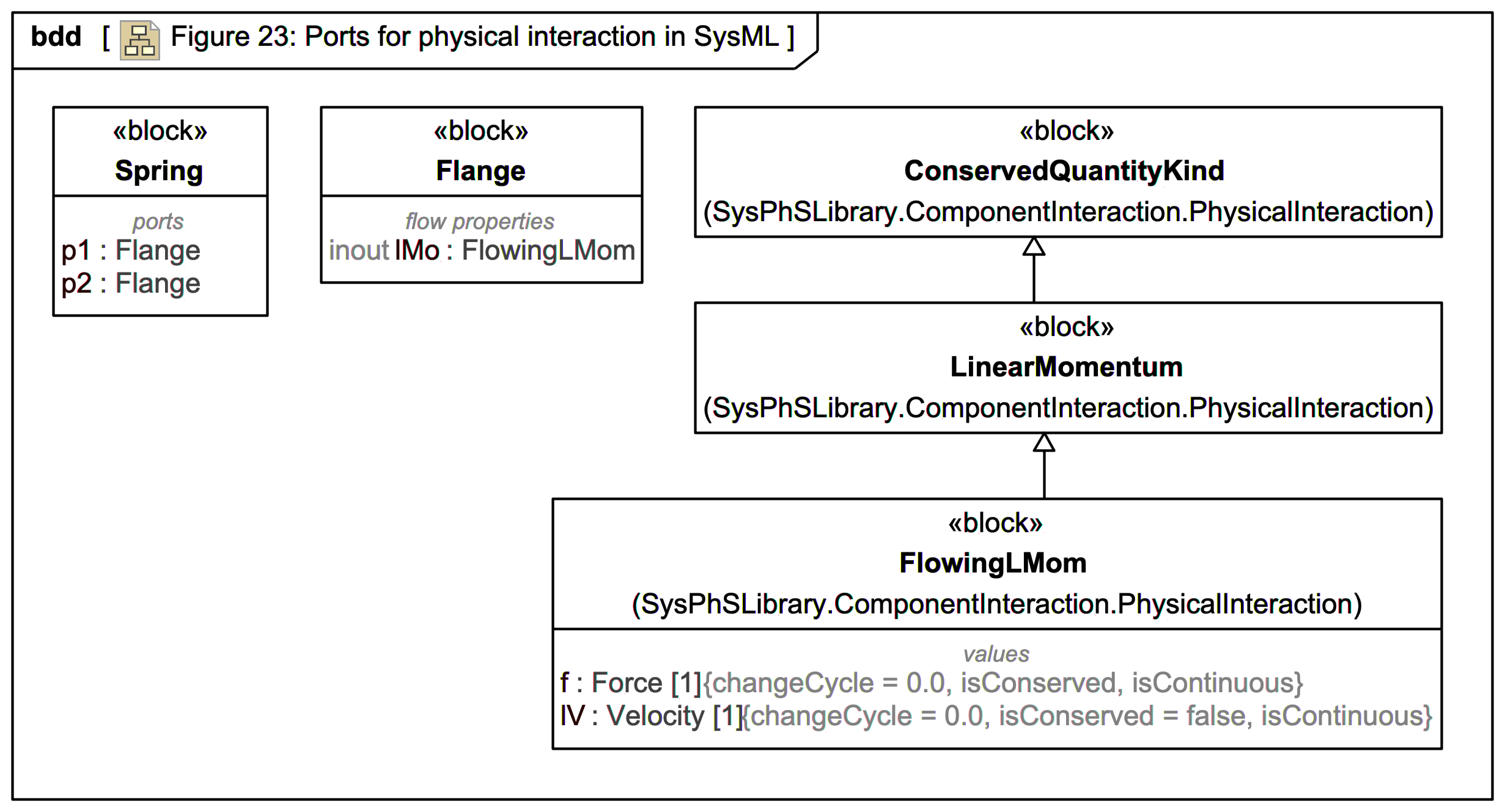

If you export the model as shown to Modelica from the MagicDraw SysML Plugin or Magic Cyber-Systems Engineer ® (Cameo Systems Modeler®) v19SP3 you get:
model Spring
Spring _Spring;
model Spring
Flange p1;
Flange p2;
end Spring;
connector Flange
flow Force f;
Velocity lV;
end Flange;
type Force=Real(unit="N");
type Velocity=Real(unit="m/s");
end Spring;
