SysPhS-1.1: p.30: 10.7.4 Modelica modeling, signal flow: Example Modelica code for Spring corresponding to 'Figure 22: Ports for signal flow in SysML' is invalid [should probably be 'input Real u;' and 'output Real y;' not 'in ...' and 'out ...']

This page identifies a possible issue, inconsistency, concern, error, or bug!
One of the ways Webel IT Australia helps promote tools, technologies, and languages is by donating a lot of time identifying, tracking, and reporting potential issues, in order to help vendors and developers improve the tools and technologies. In some cases, we also offer workarounds and advice for users. All issues tracked on our public site are offered most constructively and with sincerest gratitude to the tool vendors and technology developers.
DISCLAIMER: Vendors do not officially endorse issue analysis by Webel IT Australia.
Webel IT Australia promotes the amazing Mathematica tool and the powerful Wolfram Language and offers professional Mathematica services for computational computing and data analysis. Our Mathematica tips, issue tracking, and wishlist is offered here most constructively to help improve the tool and language and support the Mathematica user community.
DISCLAIMER: Wolfram Research does not officially endorse analysis by Webel IT Australia.
Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
Policy level
Specification keywords
Keywords
Click on the image to view it full size

model Spring
  in Real u;
  out Real y;
end Spring;
Wolfram SystemModeler flags this as invalid, and there is no such keyword 'out'.

17] 18:49 Syntax issues in model MimicSysPhS.signal.Spring
Error: MimicSysPhS.signal.Spring [2:1-2:1] line 2, column 1, (following 'Spring') at token 'in':
  Syntax error: Up to this point, an equation has been recognized. At this point, one of the following is expected:
        a new section (equation or algorithm); or
        the keyword "end" followed by the name of the class.

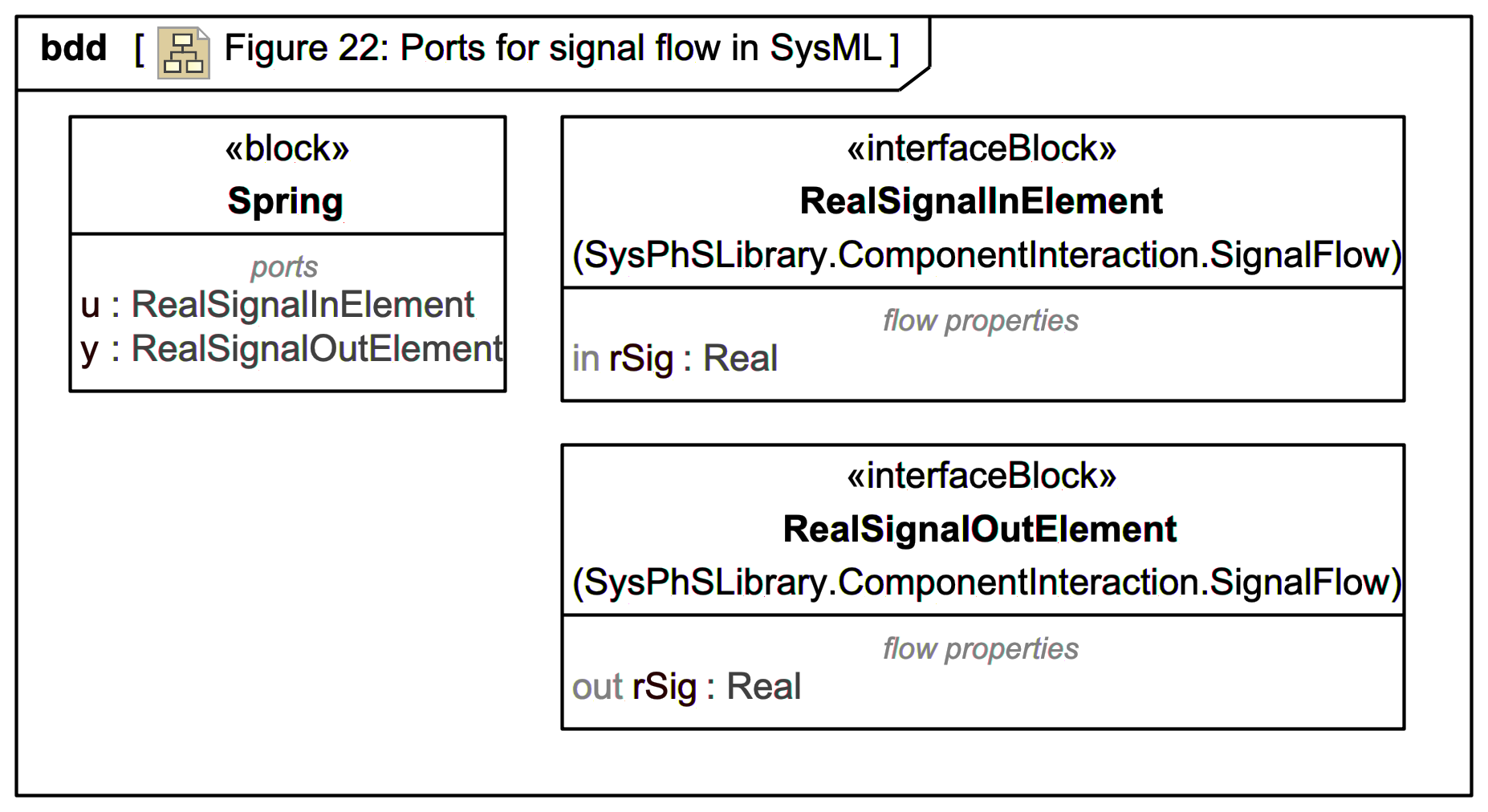

If you export the model as shown to Modelica from the MagicDraw SysML Plugin or Magic Cyber-Systems Engineer ® (Cameo Systems Modeler®) v19SP3 you get connector forms:

model Spring
  Modelica.Blocks.Interfaces.RealInput u;
  Modelica.Blocks.Interfaces.RealOutput y;
end Spring;
