SysMLv1: MagicDraw/Cameo: If redisplay of an Association with an InformationFlow or ItemFlow creates a strange extra dashed arrow with «ItemFlow» keywords (separate from the Association) just remove (only) that extra dashed line from the diagram.

This page identifies a possible issue, inconsistency, concern, error, or bug!
One of the ways Webel IT Australia helps promote tools, technologies, and languages is by donating a lot of time identifying, tracking, and reporting potential issues, in order to help vendors and developers improve the tools and technologies. In some cases, we also offer workarounds and advice for users. All issues tracked on our public site are offered most constructively and with sincerest gratitude to the tool vendors and technology developers.
DISCLAIMER: Vendors do not officially endorse issue analysis by Webel IT Australia.
Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
DISPLAY
ISSUE
TOOL
Policy level
INFORMATIVE
UML keywords
InformationFlow
InformationFlow::conveyed
InformationFlow::realization
SysMLv1.x keywords
ItemFlow
SysML Block Definition Diagram
Keywords
Click on the image to view it full size

This one often causes confusion with new MagicDraw/Cameo SysML tool users.

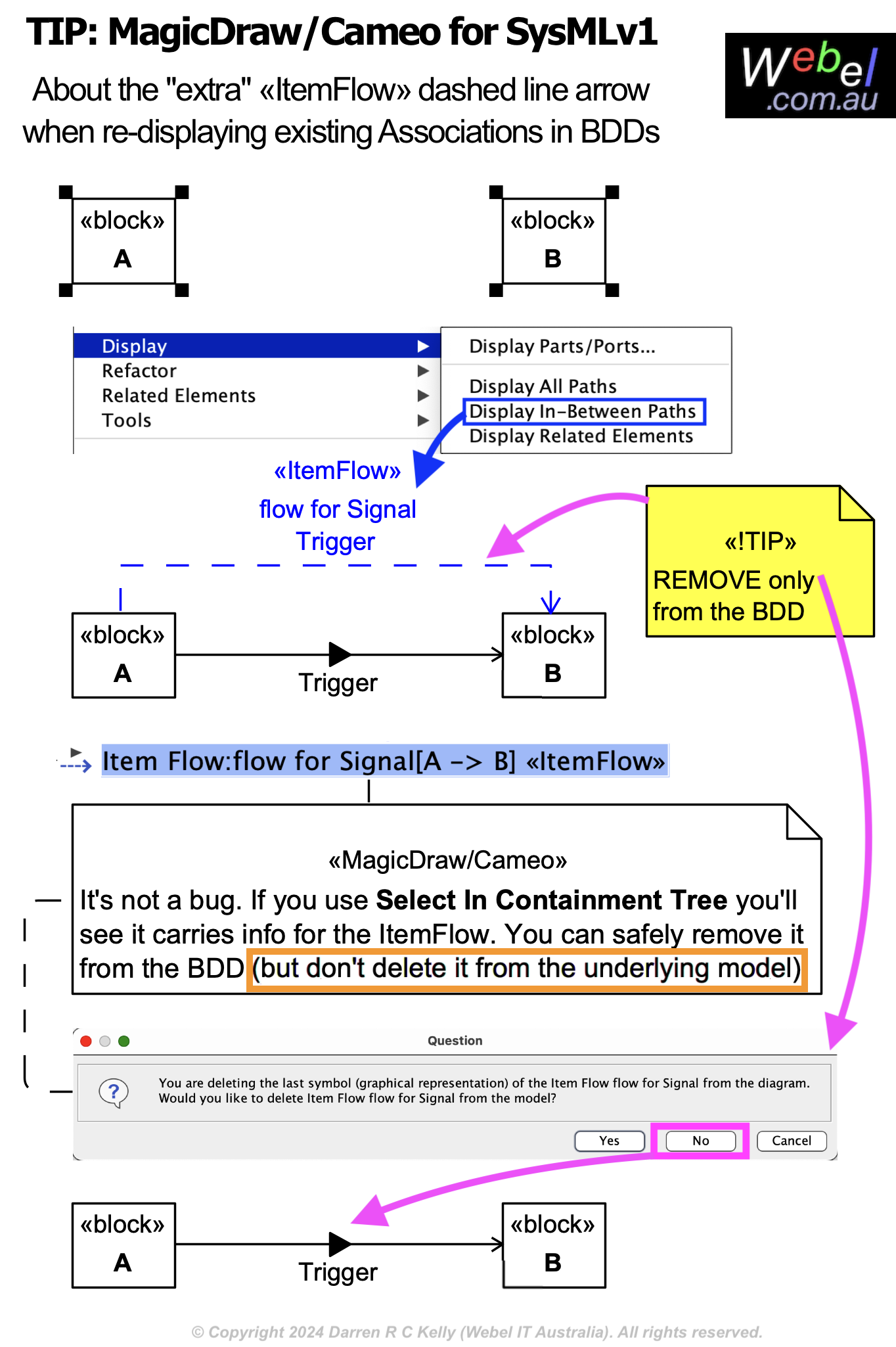

If an Association already has an ItemFlow assigned and you re-display it in a BDD you may see a strange "extra" dashed arrow with the keyword «ItemFlow» and the name of the ItemFlow, as well as the Association line/arrow symbol itself.

It's not a bug. If you use Select In Containment Tree you'll see it carries info for the ItemFlow.

You can safely remove it from the BDD as it just causes clutter, but don't delete it from the underlying model!

Make sure when the Question dialog pops up to select No!

It will then just show the Association line/arrow itself, along with the 'conveyed' Classifier of the ItemFlow.

The "extra" dashed arrow notation for ItemFlow used in Magic Cyber-Systems Engineer® (Cameo Systems Modeler®) is adapted from the notation for InformationFlow in UML2.5.1: 'An InformationFlow is represented using the same notation as Dependency, with the keyword «flow» adorning its dashed line.' It isn't "official" SysMLv1 – it doesn't appear in any SysMLv1 Figure examples or notation Tables – but it does no harm (it's actually quite interesting to inspect as the Cameo implementation carries additional information specific to ItemFlow).
