Webel vs SysPhS-1.1: Annex A.5: Humidifier: The water temperature from TemperatureIncreaseConstraint and HeatingCalculationConstraint starts at 0 °C (should probably be the environment temperature 20 °C). Needs an additional parameter and initial value.

This page identifies a possible issue, inconsistency, concern, error, or bug!
One of the ways Webel IT Australia helps promote tools, technologies, and languages is by donating a lot of time identifying, tracking, and reporting potential issues, in order to help vendors and developers improve the tools and technologies. In some cases, we also offer workarounds and advice for users. All issues tracked on our public site are offered most constructively and with sincerest gratitude to the tool vendors and technology developers.
DISCLAIMER: Vendors do not officially endorse issue analysis by Webel IT Australia.
Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
Policy level
Specification keywords
SysMLv1.x keywords
Modelica keywords
Keywords

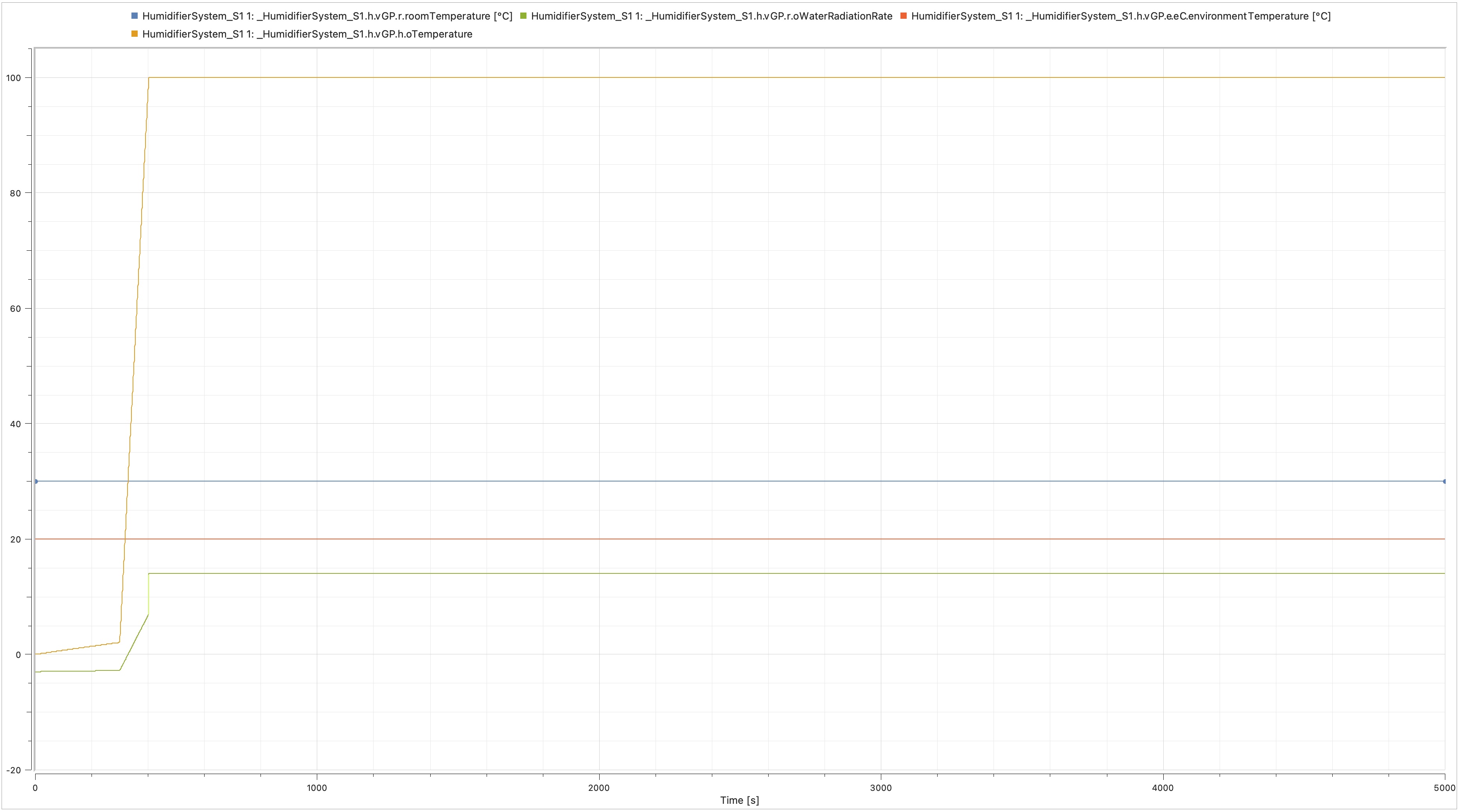

Click on the image to view it full size
From TemperatureIncreaseConstraint:

{increase=energy/(specificHeat*waterVolume)}
From HeatingCalculationConstraint:

{tOut=max(min(100,x),0)}
{der(x)=tInc/c1}
The tracking variable x is taken by default as 0 in Modelica, because it's not otherwise explicitly set.
