MagicDraw/Cameo: Using the display option to show labels inside Port rectangle symbols or to use SysML compartments on Port symbols hides any flow direction indicators.

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
CAVEAT
DISPLAY
TOOL
WARNING
UML keywords
Port
SysMLv1.x keywords
FlowProperty
Keywords
Click on the image to view it full size

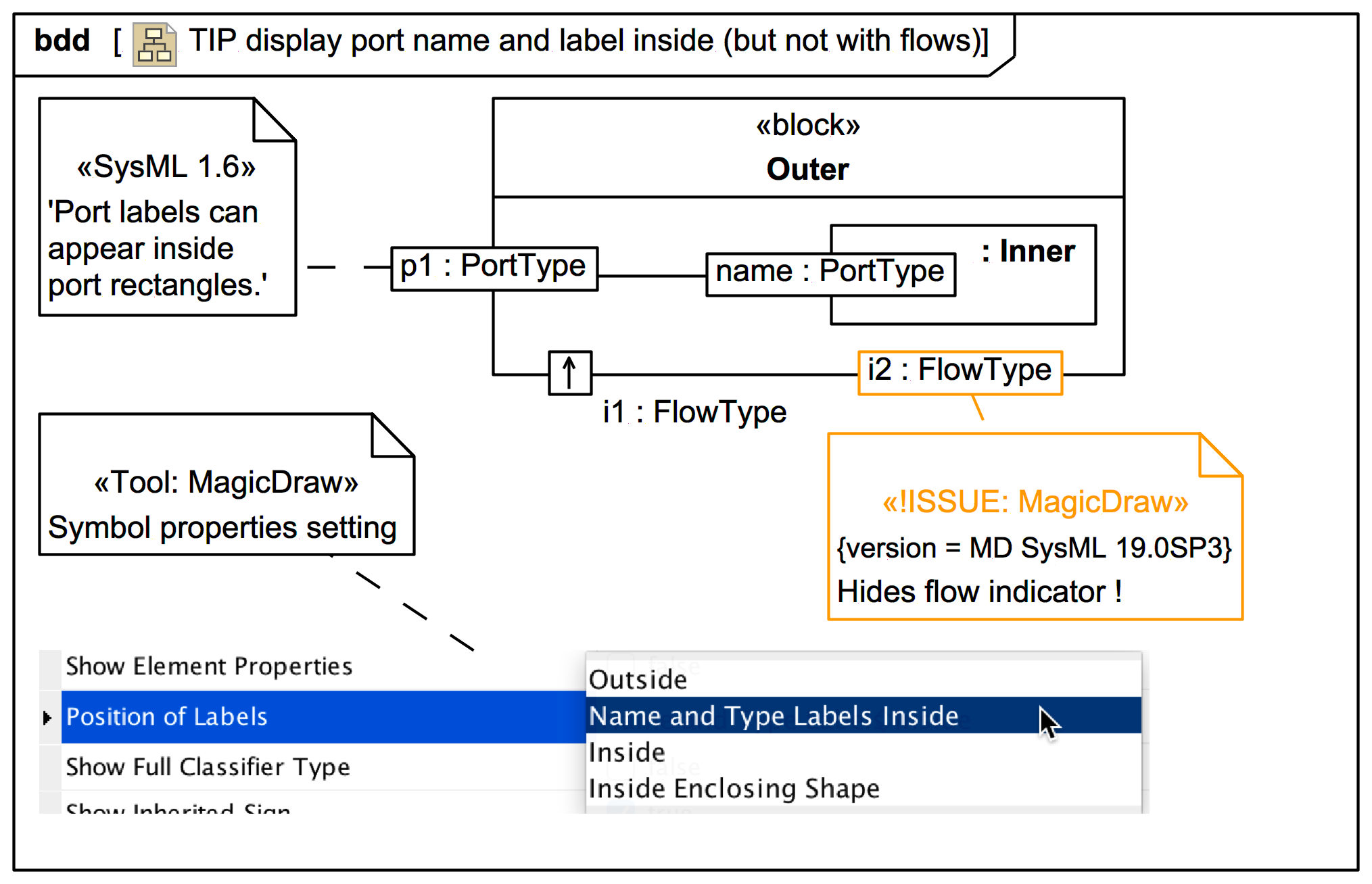

TIP display port name and label inside (but not with flows)
Relates to
WaterProcessingPlant - FlowProperty and ItemFlow example with Ports (in IBD with verbose Port compartments)
Related notes
[CAPABILITY, DISPLAY, TOOL] The MagicDraw/Cameo feature "Enable Parts Compartments" really means "Enable SysML Compartments"
[CAPABILITY, FEATURE, STYLE, TIP] TIP: MagicDraw/Cameo: Consider showing the Port name and type label inside the Port symbol! CAVEAT: This loses the direction indicators on Ports typed by Blocks with flow properties (but is fine if ItemFlows show the direction, or for "contract ports").
Related notes (backlinks)
Related snippets (extracts)
  [SysML-1.6] SysML permits any property shown on an internal block diagram to also show compartments within the property box. These compartments may be given standard or user-customized labels just as on block definitions.
